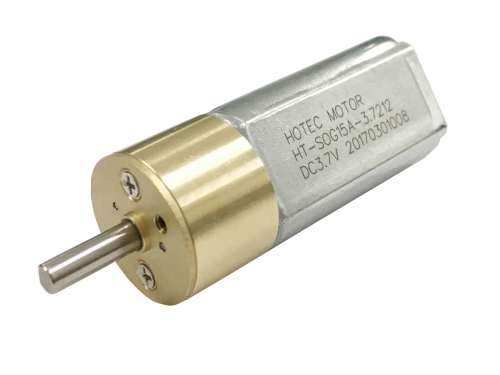

15mm Diameter DC Gear Motor

< >

HT-SOG15A

-Motor type: Brushed DC electric motor
-Gearbox: Spur gear box
-Voltage: 1~24V
-Speed: 8~1200RPM
-Torque: 0.1~5kg.cm
-Output shaft: 3mm diameter
-Product: low speed high torque gear reduction electric motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 1.5-12VDC -Speed: 8-1200rpm -Torque: 0.1-5kg.cm	-Precious Metal Brush -Precise Metal Gears -CW/CCW -Low noise	-Security and Safe Industry -Robtics and Automation -Electric Valve

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	2	3	4	5
Gear Ratio	10	35	115
		63	150
		86	360
Gearbox length “L” (mm)	11

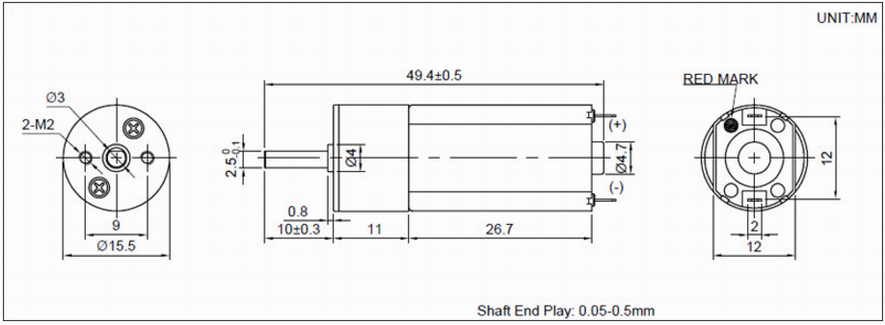

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-SOG15A-1320	3.0-14.0	12VDC	1320	≤0.05	1120	≤0.15	0.09	≤0.7	0.4
HT-SOG15A-12370	3.0-14.0	12VDC	370	≤0.05	305	≤0.15	0.3	≤0.7	1.2
HT-SOG15A-12200	3.0-14.0	12VDC	200	≤0.05	156	≤0.15	0.5	≤0.7	2.2
HT-SOG15A-12142	3.0-14.0	12VDC	142	≤0.05	106	≤0.15	0.65	≤0.7	2.45
HT-SOG15A-1288	3.0-14.0	12VDC	88	≤0.05	64	≤0.15	1.1	≤0.7	4.3
HT-SOG15A-1256	3.0-14.0	12VDC	56	≤0.05	41	≤0.15	1.8	≤0.7	7.5
HT-SOG15A-1237	3.0-14.0	12VDC	37	≤0.05	26	≤0.15	2.5	≤0.7	8.0
HT-SOG15A-5110	1.5-8.0	5VDC	110	≤0.08	82	≤0.17	0.4	≤0.75	1.7
HT-SOG15A-0586	1.5-8.0	5VDC	86	≤0.08	61	≤0.17	0.5	≤0.75	2.2
HT-SOG15A-0566	1.5-8.0	5VDC	66	≤0.08	48	≤0.17	0.6	≤0.75	2.5
HT-SOG15A-0333	1.5-4.5	3VDC	33	≤0.06	25	≤0.18	0.6	≤0.8	2.4
HT-SOG15A-0315	1.5-4.5	3VDC	15	≤0.06	10	≤0.18	1.8	≤0.8	7.2

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available

Tag: 5v geared dc motor, precision gear motor, gear mini motor
