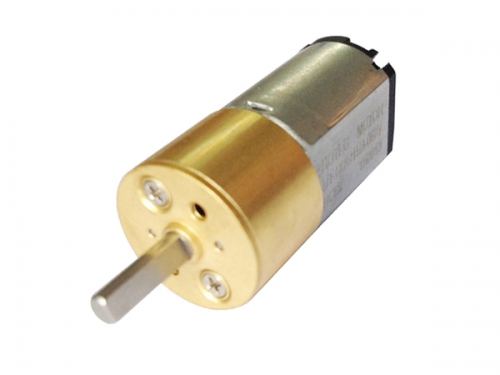

15mm Diameter DC Gear Motor

HT-SOG15B

-Motor type: Brushed DC motor
-Gearbox: Spur gearbox
-Voltage: 1~24V
-Speed: 8~1500RPM
-Torque: 0.1~4kg.cm
-Output shaft: 3mm diameter
-Product: china dc gearmotor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 1.5-12VDC
    -Speed: 8-1200rpm
    -Torque: 0.1-5kg.cm
    -Precious Metal Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Security and Safe Industry
    -Robtics and Automation
    -Electric Valve

  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

2

3

4

5

Gear Ratio

10

35

115





63

150





86

360



Gearbox length  “L” (mm)

                                      11

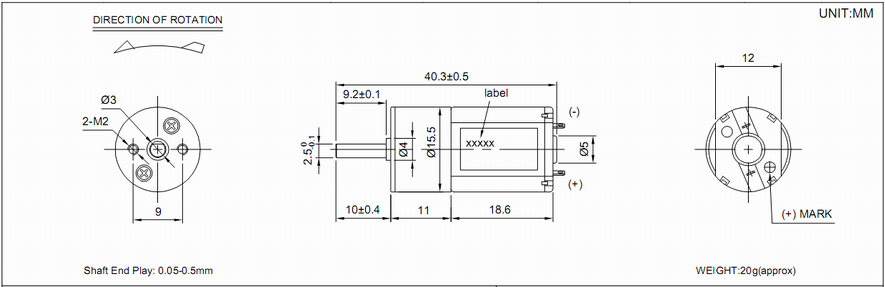

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG15B-0672

1.5-9.0

6VDC

72

≤0.05

52

≤0.19

0.40

≤0.8

1.2

HT-SOG15B-0630

1.5-9.0

6VDC

30

≤0.05

21

≤0.19

1.2

≤0.8

2.5

HT-SOG15B-05260

1.5-9.0

5VDC

260

≤0.05

195

≤0.19

0.12

≤0.8

0.4

HT-SOG15B-05145

1.5-9.0

5VDC

145

≤0.05

102

≤0.19

0.25

≤0.8

0.8

HT-SOG15B-05100

1.5-9.0

5VDC

100

≤0.05

75

≤0.19

0.3

≤0.8

0.9

HT-SOG15B-0580

1.5-8.0

5VDC

80

≤0.05

58

≤0.19

0.42

≤0.8

1.2

HT-SOG15B-0560

1.5-8.0

5VDC

60

≤0.05

43

≤0.19

0.54

≤0.8

1.5

HT-SOG15B-03156

1.5-6.0

3VDC

156

≤0.10

118

≤0.50

0.06

≤1.8

0.18

HT-SOG15B-0386

1.5-6.0

3VDC

86

≤0.10

61

≤0.50

0.13

≤1.8

0.35

HT-SOG15B-0362

1.5-6.0

3VDC

62

≤0.10

45

≤0.50

0.25

≤1.8

0.8

HT-SOG15B-0336

1.5-6.0

3VDC

36

≤0.10

27

≤0.50

0.27

≤1.8

0.7

HT-SOG15B-0315

1.5-6.0

3VDC

15

≤0.10

11

≤0.50

0.65

≤2.0

1.6

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 1.5v,3v,4.5v,6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available

Tag: 12v motor and gearbox, aslong dc motor, 5v gear motor
