30mm Diameter DC Gear Motor

HT-SOG30B

-Motor type :Brushed DC electric motor .
-Gearbox: Spur gear box
-Voltage: 1~24V
-Speed: 1~800RPM
-Torque: 0.5~18kg.cm
-Output shaft: 5mm diameter
-Product: 12vdc mega torque electric motors with reverse gear

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 1~12VDC
    -Speed: 1~800rpm
    -Torque: 0.5~12kg.cm


    -Precious Metal Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -House-hold Appliance
    -Auto and Integent Cleaner
    -Vending and Banking System
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

2

3

4

5

Gear Ratio

10

20

60

120



30

90

180





100

270







300

Gearbox length “L” (mm)

23

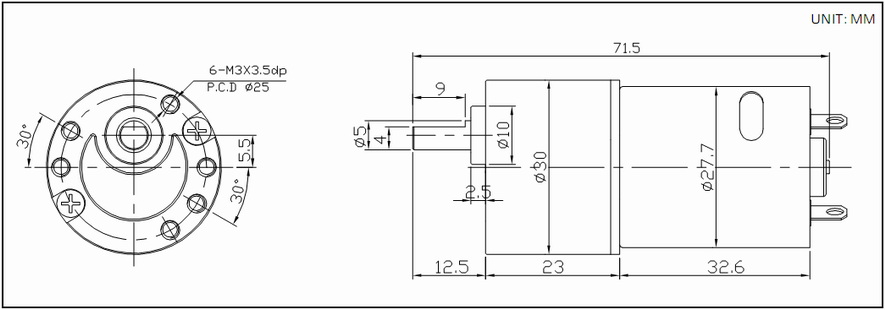

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG30B-12680

6.0-14.0

12.0

680

0.15

570

0.39

0.30

1.5

1.2

HT-SOG30B-12340

6.0-14.0

12.0

340

0.15

285

0.39

0.51

1.5

2.2

HT-SOG30B-12226

6.0-14.0

12.0

226

0.15

190

0.39

0.80

1.5

3.8

HT-SOG30B-12113

6.0-14.0

12.0

113

0.15

95

0.39

1.40

1.5

5.6

HT-SOG30B-1275

6.0-14.0

12.0

75

0.15

63

0.39

2.00

1.5

8.8

HT-SOG30B-1268

6.0-14.0

12.0

68

0.15

57

0.39

2.30

1.5

9.0

HT-SOG30B-1256.6

6.0-14.0

12.0

56.6

0.15

47.5

0.39

2.50

1.5

10.6

HT-SOG30B-1238

6.0-14.0

12.0

38

0.15

31.6

0.39

3.70

1.5

14.0

HT-SOG30B-1225

6.0-14.0

12.0

25

0.15

21

0.39

5.60

1.5

22.0

HT-SOG30B-1223

6.0-14.0

12.0

23

0.15

19

0.39

6.20

1.5

25.0

HT-SOG30B-0634

6.0-14.0

6.0

34

0.10

28.5

0.25

1.20

1.0

5.3

HT-SOG30B-0628

4.5-9.0

6.0

28

0.10

24

0.25

1.40

1.0

6.0

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
