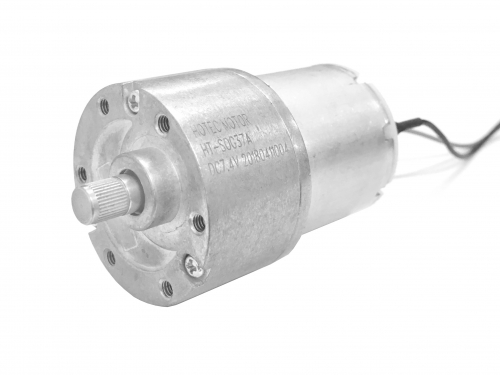

37mm Diameter DC Gear Motor

< >

HT-SOG37A

-Motor type :Brushed electric DC motor .
-Gearbox: Spur gear reducer
-Voltage: 3~24V
-Speed: 1~600RPM
-Torque: 1~35kg.cm
-Output shaft: 6mm diameter
-Product: 60 RPM 6 volt dc electric gear motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 3~24VDC -Speed: 1~600rpm -Torque: 1~35kg.cm	-Precise Carbon Brush -CW/CCW -Long lifetime -Low noise	-Vending and Banking System -Sanitary and Cleaning -Robtics and Equipment

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	2	3	4	5	6
Gear Ratio	10	20	50	120	450
		30	70	150	490
			90	210	630
				270	810
					2430
Gearbox length “L” (mm)	22.5			27.5

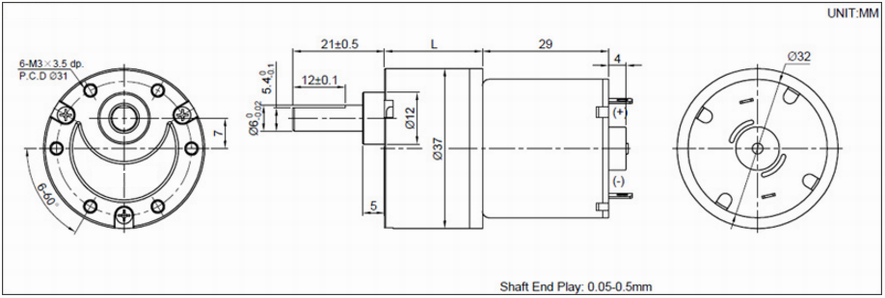

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-SOG37A-0635	4.5-7.2	6VDC	35	≤0.80	28	≤0.24	2.05	≤1.25	8.5
HT-SOG37A-0612	4.5-7.2	6VDC	12	≤0.80	9	≤0.24	5.5	≤1.25	22.85
HT-SOG37A-0605	4.5-7.2	6VDC	5	≤0.80	4	≤0.24	10.05	≤1.25	40
HT-SOG37A-063.6	4.5-7.2	6VDC	3.6	≤0.80	3	≤0.24	13	≤1.25	52
HT-SOG37A-12625	6.0-12.0	12VDC	625	≤0.16	515	≤0.55	0.55	≤2.85	2.05
HT-SOG37A-12310	6.0-12.0	12VDC	310	≤0.16	255	≤0.55	0.90	≤2.85	3.65
HT-SOG37A-12200	6.0-12.0	12VDC	200	≤0.16	168	≤0.55	1.35	≤2.85	6.15
HT-SOG37A-12120	6.0-12.0	12VDC	120	≤0.16	101	≤0.55	2.05	≤2.85	8.5
HT-SOG37A-1285	6.0-12.0	12VDC	85	≤0.16	70	≤0.55	2.85	≤2.85	12.5
HT-SOG37A-1268	6.0-12.0	12VDC	68	≤0.16	55	≤0.55	3.55	≤2.85	14.25
HT-SOG37A-1250	6.0-12.0	12VDC	50	≤0.16	41	≤0.55	4.35	≤2.85	22.5
HT-SOG37A-1230	6.0-12.0	12VDC	30	≤0.16	23	≤0.55	7.5	≤2.85	30

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available.
