37mm Diameter DC Gear Motor

< >

HT-SOG37F1

-Motor type: Brushed DC motor .
-Gearbox: Spur gearbox
-Voltage: 6~24V
-Speed: 2~600RPM
-Torque: 0.5~38kg.cm
-Output shaft: 6mm diameter
-Product: side shaft high torque dc geared motor 300rpm

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 6~24VDC -Speed: 2~600rpm -Torque: 0.5~38kg.cm	-Precious carbon Brush -Precise Metal Gears -CW/CCW -Low Noise	-Vending and Banking System -Sanitary and Cleaning -Robtics and Equipment

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	2	3	4	5	6
Gear Ratio	10	20	50	120	450
		30	70	150	490
			90	210	630
				270	810

Gearbox length “L” (mm)	22.5			27.5

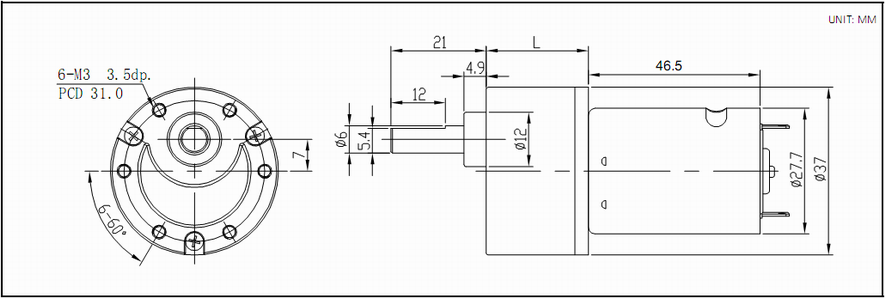

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-SOG37F1-12600	6.0-12.0	12VDC	600	≤0.15	485	≤0.60	0.8	≤3.15	3.5
HT-SOG37F1-12310	6.0-12.0	12VDC	310	≤0.15	245	≤0.60	1.5	≤3.15	6.0
HT-SOG37F1-12205	6.0-12.0	12VDC	205	≤0.15	165	≤0.60	2.2	≤3.15	8.5
HT-SOG37F1-12125	6.0-12.0	12VDC	125	≤0.15	100	≤0.60	0.32	≤3.15	1.3
HT-SOG37F1-1285	6.0-12.0	12VDC	85	≤0.15	70	≤0.60	4.55	≤3.15	17.5
HT-SOG37F1-1270	6.0-12.0	12VDC	70	≤0.15	52	≤0.60	5.85	≤3.15	25
HT-SOG37F1-1250	6.0-12.0	12VDC	50	≤0.15	42	≤0.60	7	≤3.15	28
HT-SOG37F1-1230	6.0-12.0	12VDC	30	≤0.15	24	≤0.60	12	≤3.15	48
HT-SOG37F1-1222	12-24	24VDC	22	≤0.15	17	≤0.60	16	≤3.15	65
HT-SOG37F1-1212	12-24	24VDC	12	≤0.15	10	≤0.60	26	≤3.15	80*
HT-SOG37F1-1209	12-24	24VDC	9	≤0.15	7.5	≤0.60	30	≤3.15	80*
HT-SOG37F1-1207	12-24	24VDC	7	≤0.15	6	≤0.60	30	≤3.15	80*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
