50mm Diameter DC Gear Motor
HT-SOG51A
-Motor type: Brushed DC motor .
-Gearbox: Spur gear reducer
-Voltage: 6~24V
-Speed: 2~1200RPM
-Torque: 1~50kg.cm
-Output shaft: 6.35mm diameter
-Product: 12V 1 Nm gear motor 100 rpm with encoder
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 6~24VDC
-Speed: 2~1200rpm
-Torque: 1~50kg.cm-Precious Carbon Brush
-Precise Metal Gears
-CW/CCW
-High Torque-Vending and ATM
-Equipment and Apparatus
-Robotic
Gear Ratio
|
Gear Ratio Stage |
2 |
3 |
4 |
5 |
6 |
|
Gear Ratio |
6 |
20 |
65.5 |
218 |
728 |
|
10 |
33 |
110 |
367 |
1223 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gearbox length “L” (mm) |
37.5 |
||||

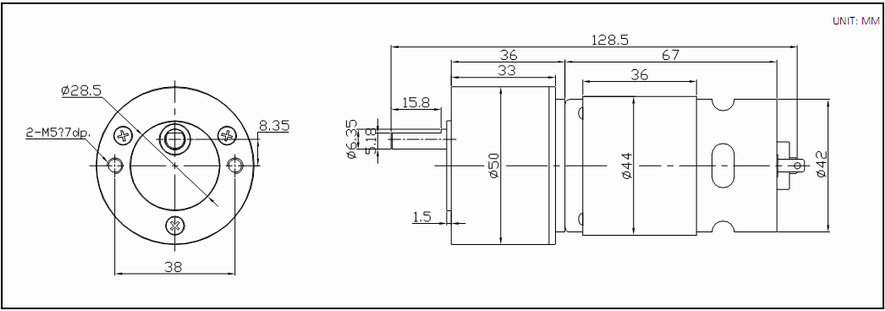

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG51A-121200 |
9.0-28.0 |
12VDC |
1200 |
≤0.9 |
1000 |
≤7.0 |
3.9 |
≤35 |
17.7 |
|
HT-SOG51A-12700 |
9.0-28.0 |
12VDC |
700 |
≤0.9 |
600 |
≤7.0 |
5.8 |
≤35 |
29.7 |
|
HT-SOG51A-12375 |
9.0-28.0 |
12VDC |
375 |
≤0.9 |
280 |
≤7.0 |
12.5 |
≤35 |
59 |
|
HT-SOG51A-12210 |
9.0-28.0 |
12VDC |
210 |
≤0.9 |
168 |
≤7.0 |
18.5 |
≤35 |
99 |
|
HT-SOG51A-12110 |
9.0-28.0 |
12VDC |
110 |
≤0.9 |
85 |
≤7.0 |
39 |
≤35 |
160 |
|
HT-SOG51A-1264 |
9.0-28.0 |
12VDC |
64 |
≤0.9 |
48 |
≤7.0 |
62 |
≤35 |
160 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
