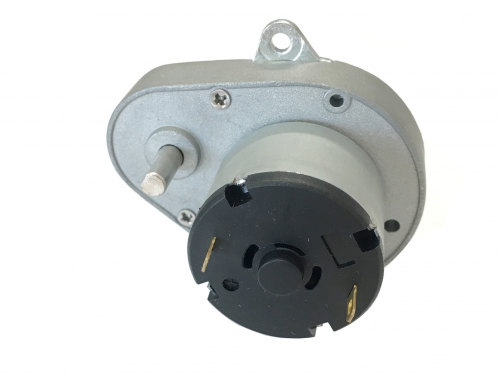

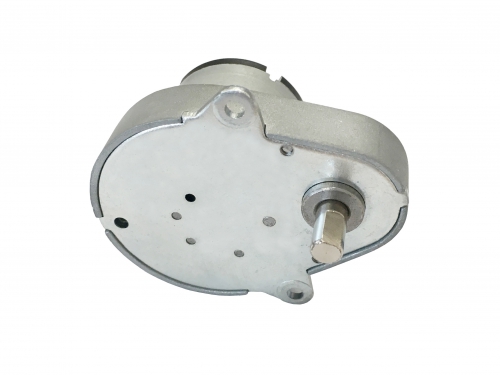

64x48mm Gearbox DC Motor

HT-SOG48

-Motor type : Brushed DC motor .
-Gearbox : Spur Gear Reduction
-Voltage: 3~24V
-Speed:  5~30RPM
-Torque: 1~18kg.cm
-Output shaft:  5mm diameter
-Product: customized 24v dc motor 2 rpm

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 5~30rpm
    -Torque: 1~18kg.cm

    -Low Speed
    -Low Noise
    -Low Cost
    -Door Opener
    -Electric Valves
    -Intelligent Home .
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

2

3

4

5

6

Gear Ratio





225

360









450













Gearbox length “L” (mm)

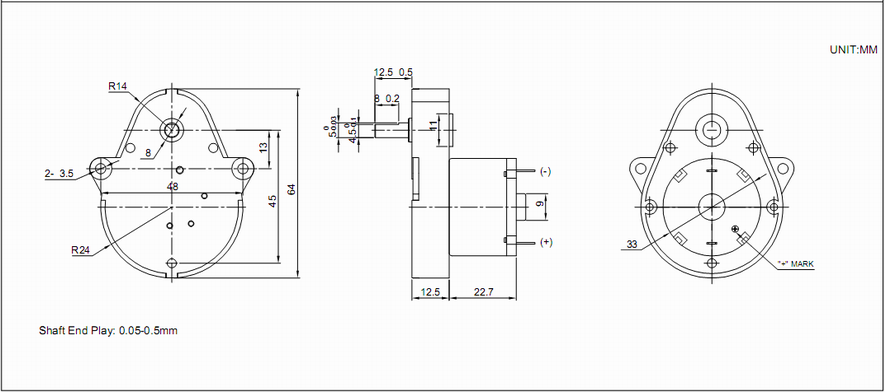

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG48-0614

3.0-6.0

6VDC

14

≤0.06

10

≤0.18

4

≤1.6

17

HT-SOG48-1226

6.0-12.0

12VDC

26

≤0.10

20

≤0.28

5

≤1.1

22

HT-SOG48-1216

6.0-12.0

12VDC

16

≤0.10

12

≤0.28

8

≤1.1

35

HT-SOG48-1213

6.0-12.0

12VDC

13

≤0.15

9

≤0.28

9

≤1.1

39

HT-SOG48-2414

12.0-24.0

24VDC

14

≤0.04

10

≤0.10

4.5

≤0.8

17.5

HT-SOG48-2408

12.0-24.0

24VDC

8

≤0.04

6

≤0.10

6

≤0.8

25

HT-SOG48-2406

12.0-24.0

24VDC

6

≤0.04

5

≤0.10

7.5

≤0.8

30

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v, 9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
