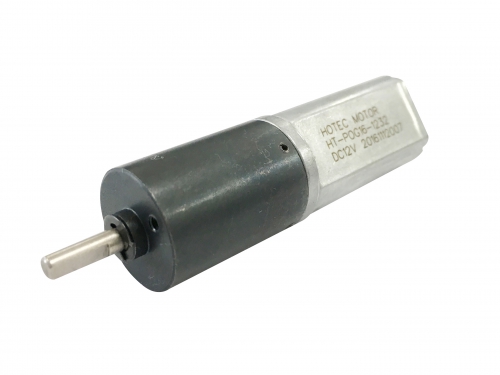

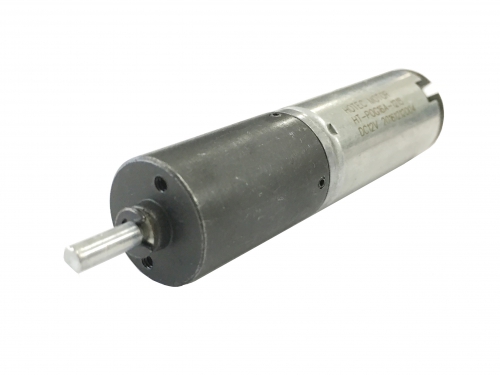

Round Gearbox Motor

HT-POG16A

-Size: 16mm Diameter
-Gearbox: Planetary gearbox
-Voltage: 1~24V
-Speed:1~2000 RPM
-Torque:0.05k~8kg.cm
-Output shaft:3mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 6~24VDC
    -Speed: 1~2000 rpm
    -Torque 0.05~8kg.cm
    -Precious Metal Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Precise Equipment & machine
    -Safe and Locking
    -Electric Valve
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

1

2

3

4

5

Gear Ratio

4

12

43

150

712

4.7

16

64

256

1024



19

 76

304

1216



22.5

90

361

1444





107

428

1715











2418

Gearbox length “L” (mm)

14

17.5

21

24.5

28

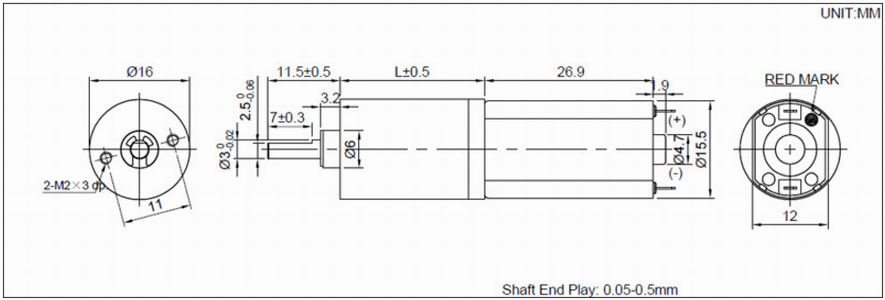

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
   RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-POG16A-12580

8.0-14.0

12VDC

580

≤0.04

460

≤0.10

0.09

≤0.45

0.5

HT-POG16A-12410

8.0-14.0

12VDC

410

≤0.04

305

≤0.10

0.13

≤0.45

0.68

HT-POG16A-12205

8.0-14.0

12VDC

205

≤0.04

150

≤0.10

0.21

≤0.45

1.05

HT-POG16A-12145

8.0-14.0

12VDC

145

≤0.04

110

≤0.10

0.33

≤0.45

1.7

HT-POG16A-12100

8.0-14.0

12VDC

100

≤0.04

78

≤0.10

0.45

≤0.45

2.3

HT-POG16A-1282

8.0-14.0

12VDC

82

≤0.04

60

≤0.10

0.58

≤0.45

3.1

HT-POG16A-1260

8.0-14.0

12VDC

60

≤0.04

45

≤0.10

0.75

≤0.45

3.8

HT-POG16A-1235

8.0-14.0

12VDC

35

≤0.04

25

≤0.10

1.3

≤0.45

7

HT-POG16A-1225

8.0-14.0

12VDC

25

≤0.04

18

≤0.10

1.75

≤0.45

8

HT-POG16A-1220

8.0-14.0

12VDC

20

≤0.04

 15

≤0.10

2.2

≤0.45

8.5

HT-POG16A-1212

8.0-14.0

12VDC

12

≤0.04

8.5

≤0.10

3.3

≤0.45

10

HT-POG16A-123.6

8.0-14.0

12VDC

3.6

≤0.04

1.8

≤0.10

5*

≤0.45

10

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available.
