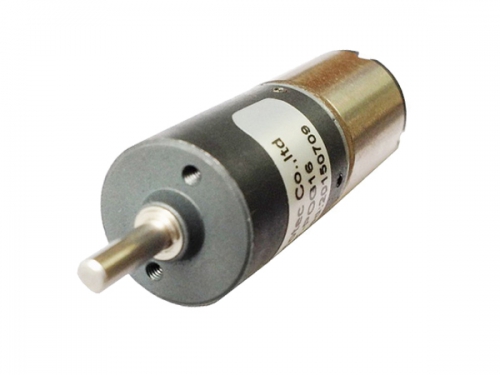

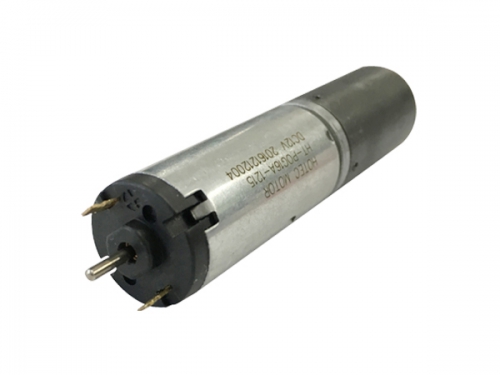

Round Gearbox Motor

HT-POG16B

-Size: 16mm Diameter
-Gearbox:Planetary gearbox
-Voltage: 3~24VDC
-Speed:1~1500 RPM
-Torque:0.02~8kg.cm
-Output shaft:3mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 6~24VDC
    -Speed: 1~2000 rpm
    -Torque 0.05~8kg.cm
    -Long life
    -Precise Metal/Plastic gears
    -CW/CCW
    -Low noise
    -Precise Equipment & machine
    -Safe and Locking
    -Electric Valve
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

1

2

3

4

5

Gear Ratio

4

       12

43

150

712

4.7

16

64

256

1024



19

      76

304

1216



22.5

90

361

1444





107

428

1715











2418

Gearbox length “L” (mm)

14

17.5

21

24.5

28

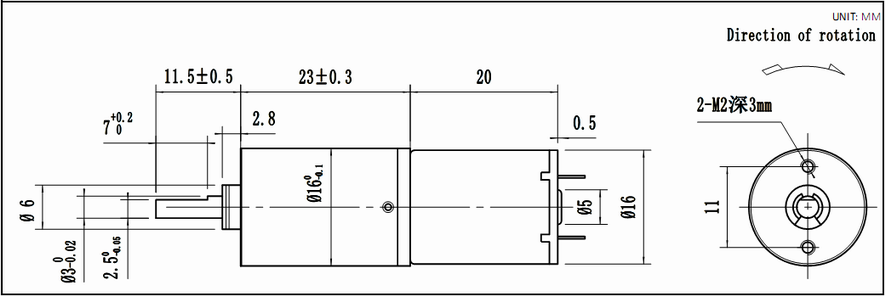

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION       RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-POG16B-12580

3.0-9.0

4.5VDC

41

≤0.11

32

≤0.40

1.3

≤0.20

6.0

HT-POG16B-12410

6.0-12.0

12VDC

300

≤0.10

250

≤0.35

0.05

≤0.20

0.15

HT-POG16B-12205

6.0-12.0

12VDC

20

≤0.10

15

≤0.10

0.58

≤0.20

3.0

1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.

Tag: motor gearbox dc, low speed 12v motor, 50 rpm motor, planetary dc motor
