Round Gearbox Motor

HT-POG22B

-Size: 22mm Diameter
-Gearbox: Planetary Gear Reduction
-Voltage: 1~24V
-Speed:1~2000 RPM
-Torque:0.08kg.cm~10kg.cm
-Output shaft: 4mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 1~2000rpm
    -Torque 0.08~10kg.cm
    -Precious Metal Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Automatic Acuator
    -Medical Equipment & Advice
    -Electric Valves
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

1

2

3

4

5

Gear Ratio

4

14

53

150

867



16

62

231

1014



19

72

270

1249





84

316

1386





104

370

1969









455



Gearbox length “L” (mm)

14.4

18

21.7

25.3

29.0

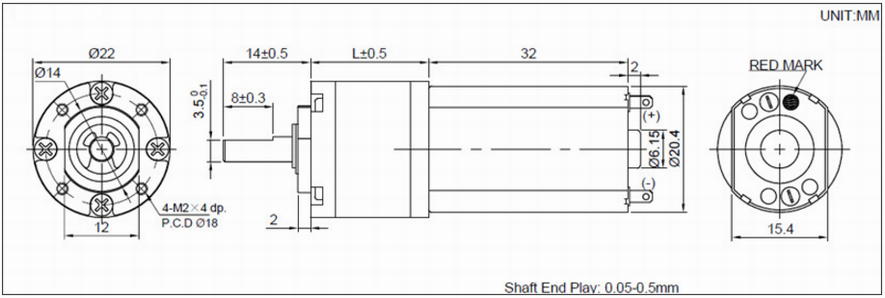

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
   RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-POG22B-12420

6.0-12.0

12VDC

420

≤0.07

330

≤0.23

0.26

≤1.2

1.05

HT-POG22B-12352

6.0-12.0

12VDC

352

≤0.07

275

≤0.23

0.3

≤1.2

1.2

HT-POG22B-12120

6.0-12.0

12VDC

120

≤0.07

100

≤0.23

0.8

≤1.2

3.2

HT-POG22B-1290

6.0-12.0

12VDC

90

≤0.07

74

≤0.23

1.15

≤1.2

4.5

HT-POG22B-1275

6.0-12.0

12VDC

75

≤0.07

60

≤0.23

1.35

≤1.2

6.0

HT-POG22B-1260

6.0-12.0

12VDC

60

≤0.07

 50

≤0.23

1.6

≤1.2

6.2

HT-POG22B-1245

6.0-12.0

12VDC

45

≤0.07

35

≤0.23

2.2

≤1.2

8.4

HT-POG22B-1230

6.0-12.0

12VDC

30

≤0.07

22

≤0.23

3.35

≤1.2

12.5

HT-POG22B-1220

6.0-12.0

12VDC

20

≤0.07

16

≤0.23

4.6

≤1.2

12.5*

HT-POG22B-1214

6.0-12.0

12VDC

14

≤0.07

11

≤0.23

6.1

≤1.2

12.5*

HT-POG22B-1208

6.0-12.0

12VDC

8

≤0.07

6

≤0.23

8.5*

≤1.2

12.5*

HT-POG22B-124.5

6.0-12.0

12VDC

4.5

≤0.07

3.2

≤0.23

8.5*

≤1.2

12.5*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available.

Keywords: low rpm electric motor 12v, micro gear motor, planetary gear motor, 5 rpm dc motor
