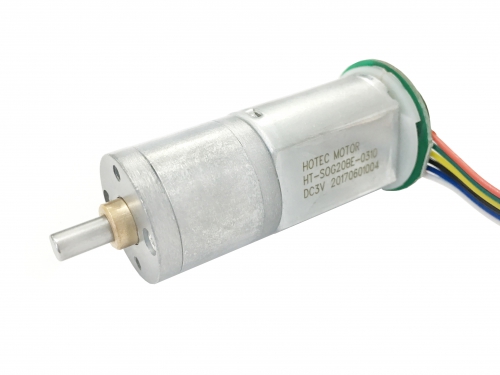

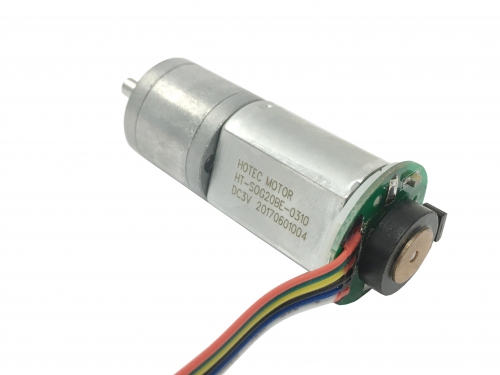

Round Gearbox Motor

HT-SOG20B

-Size: 20mm Diameter
-Gearbox :Spur Gearbox
-Voltage: 1~12V
-Speed:5~1600 RPM
-Torque:0.1~6kg.cm
-Output shaft:4mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 1~12VDC
    -Speed: 5~1600 rpm
    -Torque 0.1~6kg.cm
    -Precious Metal/carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Security and Safe Industry
    -Home and office Automation
    -Equipment and Appratus
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

2

3

4

5

Gear Ratio

10

50

100

250

12.5

62

125

313

25

78

156

391

31



195

488

Gearbox length  “L” (mm)

16

17.5

19

20.5

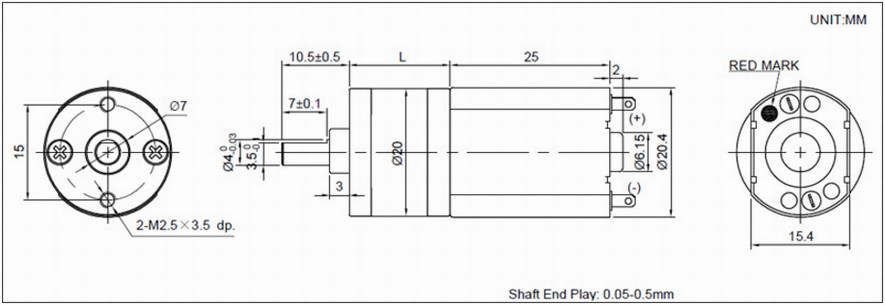

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG20B-06510

3.0-9.0

6VDC

510

≤0.05

450

≤0.16

0.07

≤0.7

0.4

HT-SOG20B-06420

3.0-9.0

6VDC

420

≤0.05

364

≤0.16

0.09

≤0.7

0.5

HT-SOG20B-06200

3.0-9.0

6VDC

200

≤0.05

160

≤0.16

0.18

≤0.7

0.8

HT-SOG20B-06165

3.0-9.0

6VDC

165

≤0.05

121

≤0.16

0.2

≤0.7

0.95

HT-SOG20B-06100

3.0-9.0

6VDC

100

≤0.05

81

≤0.16

0.3

≤0.7

1.1

HT-SOG20B-0680

3.0-9.0

6VDC

80

≤0.05

62

≤0.16

0.4

≤0.7

1.8

HT-SOG20B-0668

1.5-6.0

3VDC

68

≤0.08

50

≤0.20

0.25

≤0.85

1.1

HT-SOG20B-0355

1.5-6.0

3VDC

55

≤0.08

36

≤0.20

0.28

≤0.85

1.15

HT-SOG20B-12150

6.0-12.0

12VDC

150

≤0.02

115

≤0.10

0.22

≤0.65

0.95

HT-SOG20B-12240

6.0-12.0

12VDC

240

≤0.02

202

≤0.10

0.18

≤0.65

0.80

HT-SOG20B-12120

6.0-12.0

12VDC

120

≤0.02

106

≤0.10

0.25

≤0.65

1.10

HT-SOG20B-1222

6.0-12.0

12VDC

22

≤0.02

14

≤0.10

1.5

≤0.65

6.5

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available

Tag: sayama motor, dc motor gear set, 600 rpm dc motor, 400 rpm motor
