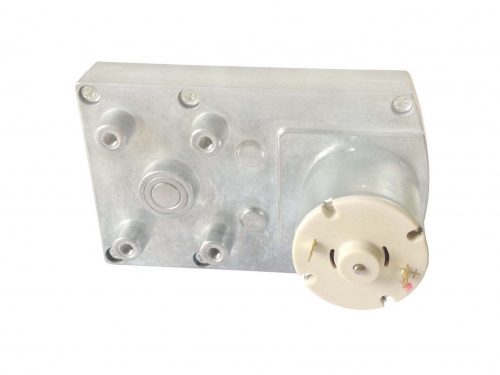

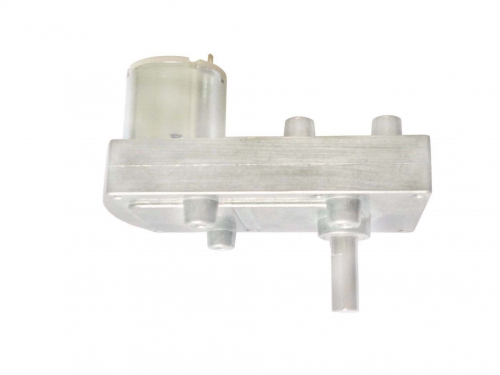

Flat Gearbox Motor

HT-COG95E

-Size: 95x60mm Diameter
-Gearbox :Spur Gear Reduction
-Voltage:3-24VDC
-Speed: 1~200 RPM
-Torque:1~40kg.cm
-Output shaft: 8mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 1~200 rpm
    -Torque: 1~40kg.cm

    -Precious Carbon Brush
    -Precise Metal Gears
    -CW/CCW Running
    -Low noise

    -Home and office Automation
    -Banking and Vending System
    -Equipment


  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

3

4

5

Gear Ratio

37

162

594

60

265

651

86

315

973





1059

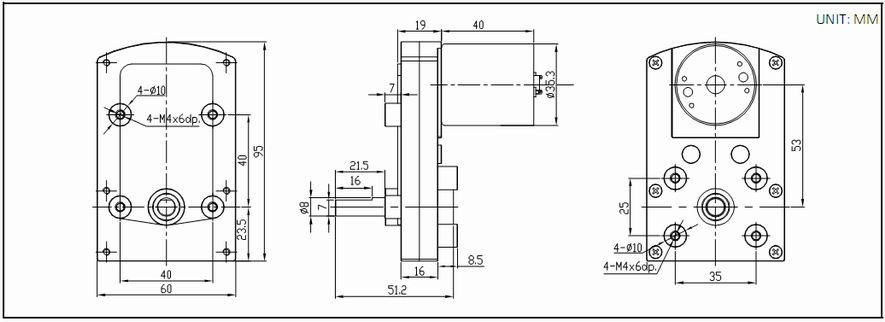

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
  RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-COG95E-24162

12-28

24VDC

162

0.06

124

0.35

3.5

2.8

18

HT-COG95E-24100

12-28

24VDC

100

0.06

76

0.35

5.6

2.8

24

HT-COG95E-2491

12-28

24VDC

91

0.06

69

0.35

6.2

2.8

25

HT-COG95E-2470

12-28

24VDC

70

0.06

52

0.35

8

2.8

32

HT-COG95E-2437

12-28

24VDC

37

0.06

27

0.35

15

2.8

60

HT-COG95E-2423

12-28

24VDC

23

0.06

16

0.35

23

2.8

85

HT-COG95E-2419

12-28

24VDC

19

0.06

13.5

0.35

28

2.8

115

HT-COG95E-2410

12-28

24VDC

10

0.06

7

0.35

50

2.8

200

HT-COG95E-2409

12-28

24VDC

9

0.06

6

0.35

55

2.8

220

HT-COG95E-2406

12-28

24VDC

6

0.06

4

0.35

75

2.8

300

HT-COG95E-245.6

12-28

24VDC

5.6

0.06

3.6

0.35

82

2.8

320

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
