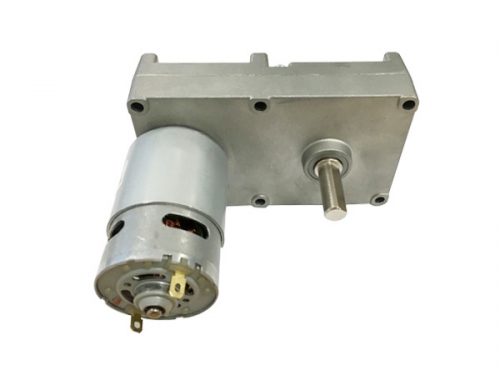

Flat Gearbox Motor

HT-FOG119B

-Size: 119x70 mm
-Gearbox :Spur Gear Reduction
-Voltage:12-36VDC
-Speed: 0.1-50 RPM
-Torque: 10-500kg.cm
-Output shaft: 8mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 12~36VDC
    -Speed: 0.1~47 rpm
    -Torque: 10~500kg.cm

    -Precious Carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -Low RPM

    -Home and office Automation
    -Auto Eqipment and Apparatus
    -Vending and Banking

  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

3

4

5

6

Gear Ratio

127

389

1269

3385

251

590

1601

5078



722

1929





897

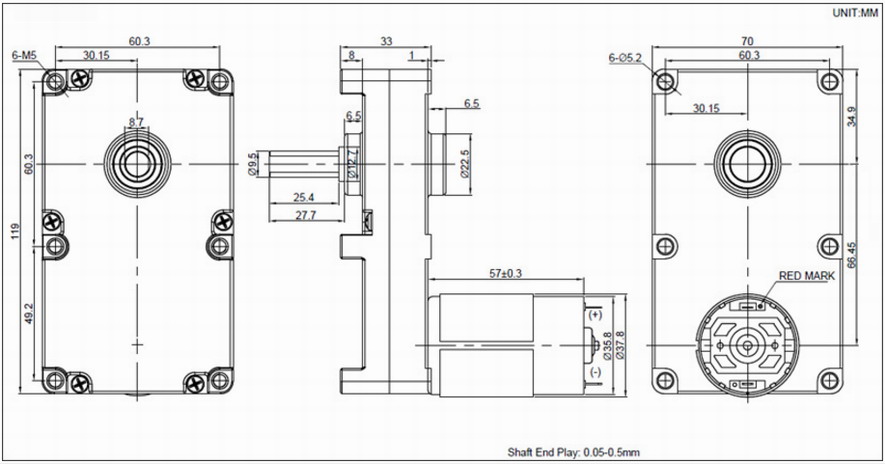

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
   RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-FOG119B-1250

12.0-24.0

12VDC

50

≤0.40

35.5

≤2.0

28

≤10.5

110

HT-FOG119B-1225

12.0-24.0

12VDC

25

≤0.40

18

≤2.0

35

≤10.5

130

HT-FOG119B-1220

12.0-24.0

12VDC

20

≤0.40

15.5

≤2.0

195

≤10.5

600

HT-FOG119B-1216

12.0-24.0

12VDC

16

≤0.40

11.5

≤2.0

85

≤10.5

350

HT-FOG119B-1210

12.0-24.0

12VDC

10

≤0.40

7.5

≤2.0

131

≤10.5

420

HT-FOG119B-1208

12.0-24.0

12VDC

8

≤0.40

6

≤2.0

155

≤10.5

500

HT-FOG119B-126.5

12.0-24.0

12VDC

6.5

≤0.40

4.5

≤2.0

191

≤10.5

600

HT-FOG119B-124.5

12.0-24.0

12VDC

4.5

≤0.40

3.2

≤2.0

255*

≤10.5

600*

HT-FOG119B-1204

12.0-24.0

12VDC

4

≤0.40

2.7

≤2.0

289*

≤10.5

600*

HT-FOG119B-1203

12.0-24.0

12VDC

3

≤0.40

1.8

≤2.0

300*

≤10.5

600*

HT-FOG119B-121.8

12.0-24.0

12VDC

1.8

≤0.40

1.3

≤2.0

300*

≤10.5

600*

HT-FOG119B-121.2

12.0-24.0

12VDC

1.2

≤0.40

0.8

≤2.0

300*

≤10.5

600*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available.
