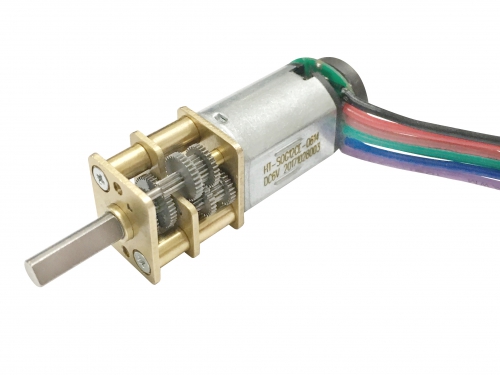

12mm Diameter DC Gear Motor
HT-SOG12C
-Motor type: Brushed DC motor
-Gearbox :Spur gear reducer
-Voltage: 1~12VDC
-Speed: 5~2000RPM
-Torque: 0.02kg.cm~2kg.cm
-Output shaft: 3mm diameter
-Product: 12mm n20 micro speed gear motor
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 1~12VDC
-Speed: 5~2000rpm
-Torque: 0.02~3kg.cm-Precious Metal/Carbon Brush
-Precise Metal Gears
-CW/CCW
-Low noise-Electronic Lock and Safe
-Robtics
-Electric Valve-Banking and Vending Machine
Gear Ratio
|
Gear Ratio Stage |
2 |
3 |
4 |
5 |
|
Gear Ratio |
10 |
30 |
150 |
625 |
|
12 |
50 |
210 |
1000 |
|
|
|
63 |
250 |
|
|
|
|
100 |
298 |
|
|
|
|
|
340 |
|
|
|
|
|
380 |
|
|
|
Gearbox length “L” (mm) |
9 |
12 |
||

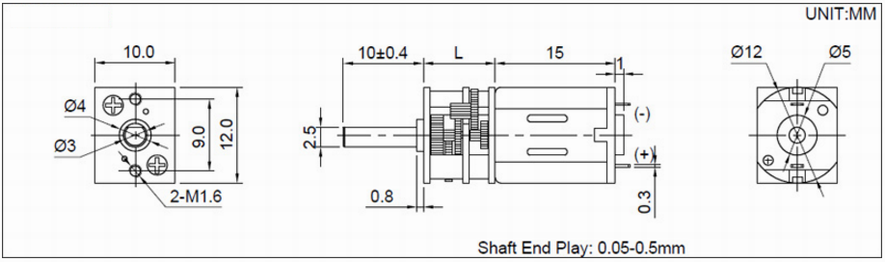

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG12C-1510 |
1.0-3.0 |
1.5VDC |
10 |
≤0.03 |
7 |
≤0.07 |
0.4 |
≤0.3 |
1.8 |
|
HT-SOG12C-1518 |
1.0-3.0 |
1.5VDC |
18 |
≤0.03 |
12 |
≤0.11 |
0.2 |
≤0.5 |
1 |
|
HT-SOG12C-0340 |
1.5-6.0 |
3VDC |
40 |
≤0.04 |
31 |
≤0.15 |
0.32 |
≤0.6 |
1.2 |
|
HT-SOG12C-4550 |
1.5-6.0 |
4.5VDC |
50 |
≤0.04 |
42 |
≤0.15 |
0.55 |
≤0.65 |
2 |
|
HT-SOG12C-0555 |
1.5-8.0 |
5VDC |
55 |
≤0.03 |
44 |
≤0.21 |
0.65 |
≤0.8 |
2 |
|
HT-SOG12C-51650 |
1.5-8.0 |
5VDC |
1650 |
≤0.05 |
1420 |
≤0.21 |
0.03 |
≤0.15 |
0.15 |
|
HT-SOG12C-05800 |
1.5-8.0 |
5VDC |
800 |
≤0.05 |
690 |
≤0.21 |
0.05 |
≤0.9 |
0.16 |
|
HT-SOG12C-06550 |
1.5-9.0 |
6VDC |
550 |
≤0.05 |
425 |
≤0.21 |
0.15 |
≤0.9 |
0.6 |
|
HT-SOG12C-06330 |
1.5-9.0 |
6VDC |
330 |
≤0.05 |
252 |
≤0.21 |
0.14 |
≤0.9 |
0.55 |
|
HT-SOG12C-06180 |
1.5-9.0 |
6VDC |
180 |
≤0.05 |
112 |
≤0.21 |
0.25 |
≤0.9 |
0.6 |
|
HT-SOG12C-0665 |
3.0-9.0 |
6VDC |
65 |
≤0.04 |
46 |
≤0.25 |
0.73 |
≤0.95 |
2.5 |
|
HT-SOG12C-0990 |
3.0-9.0 |
9VDC |
90 |
≤0.15 |
83 |
≤0.25 |
0.45 |
≤0.8 |
1.3 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 1.5v,3v,4.5v,6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
