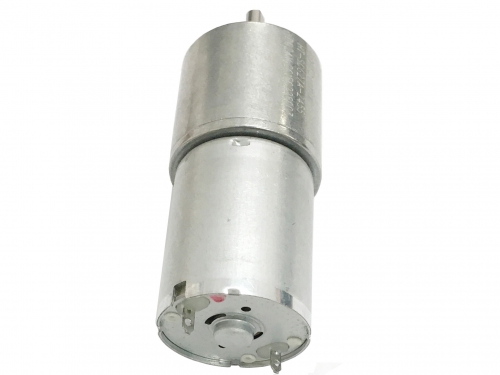

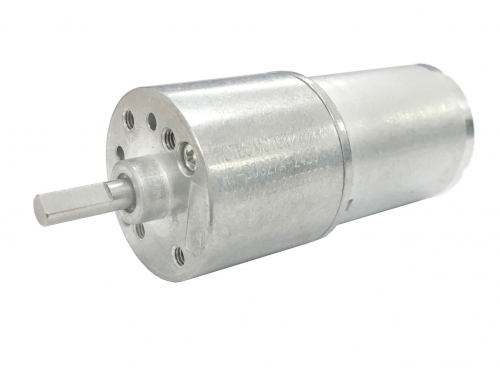

27mm Diameter DC Gear Motor
HT-SOG27A
-Motor type: Brushed DC motor .
-Gearbox: Spur gear box
-Voltage: 3~24V
-Speed: 1~800RPM
-Torque: 0.1~8kg.cm
-Output shaft: 4mm diameter
-Product: 12vdc high torque 200 rpm gear box motor
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3.0~24VDC
-Speed: 1~800rpm
-Torque: 0.1~8kg.cm
-Precious Metal/Carbon Brush
-Precise Metal Gears
-CW/CCW
-Low noise-Electronic Lock and Safe
-Electric Vavle and Acuator
-Equipment and Appratus
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
6 |
7 |
8 |
|
Gear Ratio |
10 |
21 |
43 |
92 |
188 |
392 |
|
|
27 |
61 |
110 |
193 |
438 |
|
|
|
|
|
120 |
210 |
478 |
|
|
|
|
|
139 |
250 |
521 |
|
|
|
|
|
|
317 |
620 |
|
|
|
|
|
|
|
720 |
|
|
Gearbox length “L” (mm) |
25 |
|||||

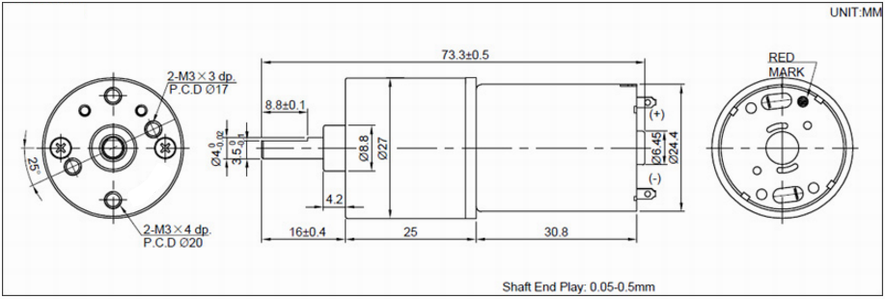

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG27A-0668 |
3.0-7.2 |
6VDC |
68 |
≤0.04 |
55 |
≤0.15 |
0.4 |
≤0.78 |
2.2 |
|
HT-SOG27A-0645 |
3.0-7.2 |
6VDC |
45 |
≤0.04 |
36 |
≤0.15 |
0.72 |
≤0.78 |
3.65 |
|
HT-SOG27A-0624 |
3.0-7.2 |
6VDC |
24 |
≤0.04 |
18 |
≤0.15 |
0.9 |
≤0.78 |
4.80 |
|
HT-SOG27A-068.5 |
3.0-7.2 |
6VDC |
8.5 |
≤0.04 |
7 |
≤0.15 |
2.25 |
≤0.78 |
9.35 |
|
HT-SOG27A-0604 |
3.0-7.2 |
6VDC |
4 |
≤0.04 |
2.6 |
≤0.15 |
4.8 |
≤0.78 |
19.50 |
|
HT-SOG27A-12132 |
6.0-14.0 |
12VDC |
132 |
≤0.05 |
115 |
≤0.23 |
0.7 |
≤1.18 |
3.53 |
|
HT-SOG27A-1290 |
6.0-14.0 |
12VDC |
90 |
≤0.05 |
76 |
≤0.23 |
1.1 |
≤1.18 |
5.60 |
|
HT-SOG27A-1260 |
6.0-14.0 |
12VDC |
60 |
≤0.05 |
52 |
≤0.23 |
1.45 |
≤1.18 |
6.55 |
|
HT-SOG27A-1245 |
6.0-14.0 |
12VDC |
45 |
≤0.05 |
40 |
≤0.23 |
1.82 |
≤1.18 |
7.25 |
|
HT-SOG27A-1230 |
6.0-14.0 |
12VDC |
30 |
≤0.05 |
25 |
≤0.23 |
2.55 |
≤1.18 |
10.75 |
|
HT-SOG27A-1222 |
6.0-14.0 |
12VDC |
22 |
≤0.05 |
18 |
≤0.23 |
3.45 |
≤1.18 |
13.65 |
|
HT-SOG27A-1212 |
6.0-14.0 |
12VDC |
12 |
≤0.05 |
10 |
≤0.23 |
6.5 |
≤1.18 |
22.5* |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
