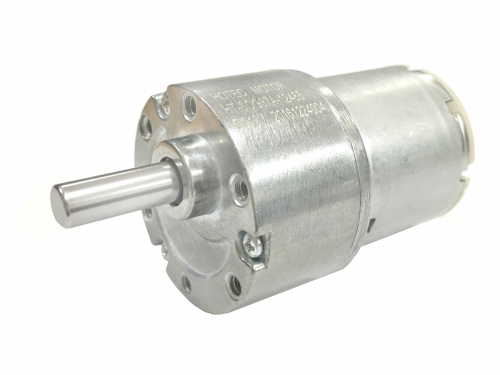

30mm Diameter DC Gear Motor

< >

HT-SOG30A

-Motor type: brushed DC motor .
-Gearbox type: Spur gearbox
-Voltage: 6~24V
-Speed: 1~800RPM
-Torque: 0.5-25kg.cm
-Output shaft: 5mm diameter
-Product: 12v dc 300 rpm high torque gearbox motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 1~24VDC -Speed: 1~800rpm -Torque: 0.5~18kg.cm	-Precious Carbon Brush -Precise Metal Gears -CW/CCW -Low noise	-House-hold Appliance -Auto and Integent Cleaner -Vending and Banking System

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	2	3	4	5
Gear Ratio	10	20	60	120
		30	90	180
			100	270
				300
Gearbox length “L” (mm)	23

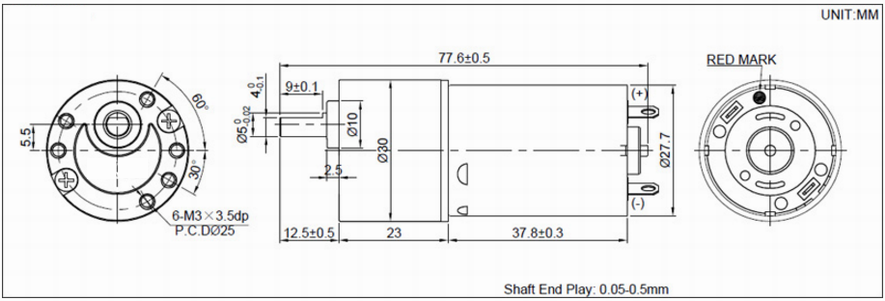

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-SOG30A-0630	4.6-7.2	6VDC	30	≤0.07	23	≤0.25	1.95	≤1.28	8.0
HT-SOG30A-0625	4.6-7.2	6VDC	25	≤0.07	18	≤0.25	2.05	≤1.28	8.5
HT-SOG30A-0618	4.6-7.2	6VDC	18	≤0.07	12	≤0.25	3.25	≤1.28	12.0
HT-SOG30A-0610	4.6-7.2	6VDC	10	≤0.07	7.5	≤0.25	5.35	≤1.28	20.5
HT-SOG30A-12600	6.0-14.0	12VDC	600	≤0.15	460	≤0.55	0.65	≤2.80	2.25
HT-SOG30A-12300	6.0-14.0	12VDC	300	≤0.15	240	≤0.55	1.05	≤2.804	.25
HT-SOG30A-12200	6.0-14.0	12VDC	200	≤0.15	155	≤0.55	1.55	≤2.80	6.80
HT-SOG30A-12100	6.0-14.0	12VDC	100	≤0.15	75	≤0.55	2.75	≤2.80	11.75
HT-SOG30A-1265	6.0-14.0	12VDC	65	≤0.15	50	≤0.55	4.05	≤2.80	16.5
HT-SOG30A-1260	6.0-14.0	12VDC	60	≤0.15	45	≤0.55	4.55	≤2.80	18.95
HT-SOG30A-1250	6.0-14.0	12VDC	50	≤0.15	40	≤0.55	5.05	≤2.80	20.50
HT-SOG30A-1220	6.0-14.0	12VDC	20	≤0.15	15	≤0.55	10.05*	≤2.80	30*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
