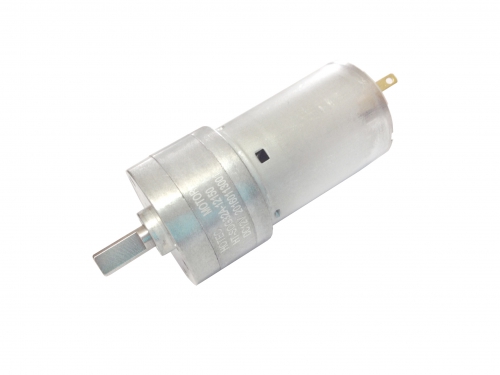

32mm Diameter DC Gear Motor

HT-SOG32A

-Motor type: Brushed DC motor .
-Gearbox : Spur gearhead
-Voltage: 3-24V
-Speed: 1~600RPM
-Torque: 0.5-20kg.cm
-Output shaft: 6mm diameter
-Product: 12 v micro gearhead dc motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 2~24VDC
    -Speed: 1~600rpm
    -Torque: 0.5~20kg.cm


    -Precious Carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -House-hold Appliance
    -Auto and Integent Cleaner
    -Vending and Banking System
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

3

4

5

6

Gear Ratio

13.4

40

73

170



45.5

94

219



52

121

282





136

362







155

409









466

Gearbox length “L” (mm)

26.5

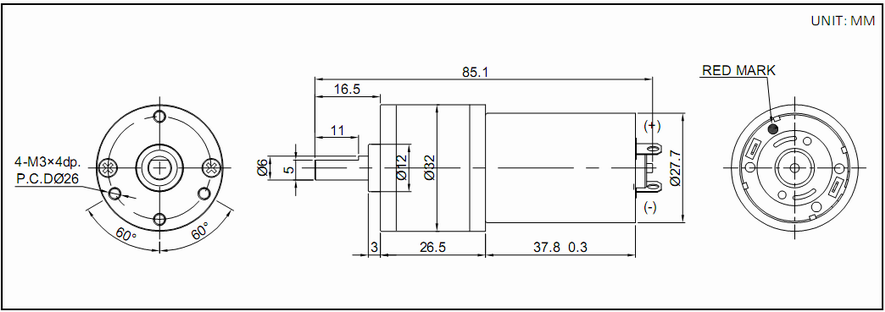

Dimensions

Reference

MODEL

                      VOLTAGE

            NO LOAD

            AT MAX EFFICIENCY

            AT STALL

OPERATION
     RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG32A-12450

6.0-14.0

12VDC

450

≤0.20

380

≤0.70

0.65

≤3.55

2.55

HT-SOG32A-12155

6.0-14.0

12VDC

155

≤0.20

125

≤0.70

1.85

≤3.55

7.2

HT-SOG32A-12135

6.0-14.0

12VDC

135

≤0.20

115

≤0.70

2.05

≤3.55

8.5

HT-SOG32A-12116

6.0-14.0

12VDC

116

≤0.20

95

≤0.70

2.35

≤3.55

9.05

HT-SOG32A-1280

6.0-14.0

12VDC

80

≤0.20

68

≤0.70

3.05

≤3.55

12.55

HT-SOG32A-1265

6.0-14.0

12VDC

65

≤0.20

52

≤0.70

3.85

≤3.55

16.25

HT-SOG32A-1250

6.0-14.0

12VDC

50

≤0.20

42

≤0.70

5.05

≤3.55

 20.55

HT-SOG32A-1242

6.0-14.0

12VDC

42

≤0.20

35

≤0.70

5.65

≤3.55

24.55

HT-SOG32A-1235

6.0-14.0

12VDC

35

≤0.20

30

≤0.70

6.05

≤3.55

26

HT-SOG32A-1227

6.0-14.0

12VDC

27

≤0.20

23

≤0.70

7.5

≤3.55

30

HT-SOG32A-1215

6.0-14.0

12VDC

15

≤0.20

12

≤0.70

14.05

≤3.55

45*

HT-SOG32A-1212

6.0-14.0

12VDC

12

≤0.20

10

≤0.70

16.05

≤3.55

50*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.

Tag: maxon gear, gear reduction unit, 50 rpm gear motor
