32mm Diameter DC Gear Motor
HT-SOG32B
-Motor type: Brushed DC motor .
-Gearbox: Spur gear box
-Voltage: 3~24V
-Speed: 1~600RPM
-Torque: 0.5~15kg.cm
-Output shaft: 6mm diameter
-Product: 24volt dc geared motor 300 rpm 3.5 w
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3~24VDC
-Speed: 1~600rpm
-Torque: 0.5~15kg.cm
-Precious Metal /Carbon Brush
-Precise Metal Gears
-CW/CCW
-Low noise-House-hold Appliance
-Auto and Integent Cleaner
-Vending and Banking System
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
6 |
|
Gear Ratio |
13.4 |
40 |
73 |
170 |
|
|
45.5 |
94 |
219 |
|
|
|
52 |
121 |
282 |
|
|
|
|
136 |
362 |
|
|
|
|
|
155 |
409 |
|
|
|
|
|
466 |
|
Gearbox length “L” (mm) |
26.5 |
|||

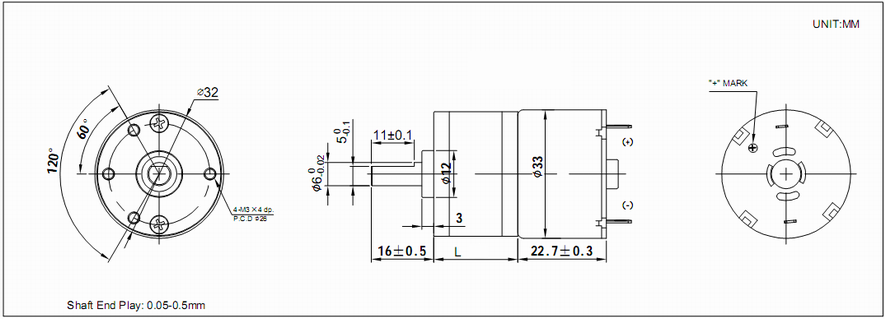

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG32B-6252 |
6.0-12.0 |
6VDC |
252 |
≤0.06 |
185 |
≤0.25 |
0.35 |
≤1.25 |
1.35 |
|
HT-SOG32B-0680 |
6.0-12.0 |
6VDC |
80 |
≤0.06 |
60 |
≤0.25 |
0.85 |
≤1.25 |
3.35 |
|
HT-SOG32B-0672 |
6.0-12.0 |
6VDC |
72 |
≤0.06 |
53 |
≤0.25 |
1.05 |
≤1.25 |
4.35 |
|
HT-SOG32B-0664 |
6.0-12.0 |
6VDC |
64 |
≤0.06 |
45 |
≤0.25 |
1.15 |
≤1.25 |
4.85 |
|
HT-SOG32B-0645 |
6.0-12.0 |
6VDC |
45 |
≤0.06 |
32 |
≤0.25 |
1.55 |
≤1.25 |
6.75 |
|
HT-SOG32B-0635 |
6.0-12.0 |
6VDC |
35 |
≤0.06 |
25 |
≤0.25 |
2.05 |
≤1.25 |
8.2 |
|
HT-SOG32B-0624 |
6.0-12.0 |
6VDC |
24 |
≤0.06 |
17 |
≤0.25 |
3.05 |
≤1.25 |
13.75 |
|
HT-SOG32B-0618 |
6.0-12.0 |
6VDC |
18 |
≤0.06 |
12 |
≤0.25 |
3.55 |
≤1.25 |
15.25 |
|
HT-SOG32B-0612 |
6.0-12.0 |
6VDC |
12 |
≤0.06 |
8 |
≤0.25 |
6.10 |
≤1.25 |
24 |
|
HT-SOG32B-0609 |
6.0-12.0 |
6VDC |
9 |
≤0.06 |
6 |
≤0.25 |
7.65 |
≤1.25 |
31 |
|
HT-SOG32B-0608 |
6.0-12.0 |
6VDC |
8 |
≤0.06 |
5.5 |
≤0.25 |
8.05 |
≤1.25 |
32 |
|
HT-SOG32B-0607 |
6.0-12.0 |
6VDC |
7 |
≤0.06 |
5 |
≤0.25 |
9.25 |
≤1.25 |
36 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
Tag: 6 rpm gear motor, low rpm gear motor, in gear motors
