32mm Diameter DC Gear Motor
HT-SOG32C
-Motor type: Brushed DC motor .
-Gearbox: Spur gearbox
-Voltage: 3~24V
-Speed: 3~600RPM
-Torque: 0.5-15kg.cm
-Output shaft: 6mm diameter
-Product: 12 volt low rpm high torque micro motor and gearing
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3~24VDC
-Speed: 5~600rpm
-Torque: 0.5~15kg.cm
-Precious Carbon Brush
-Precise Metal Gears
-CW/CCW
-Low noise-House-hold Appliance
-Auto and Integent Cleaner
-Vending and Banking System
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
6 |
|
Gear Ratio |
13.4 |
40 |
73 |
170 |
|
|
45.5 |
94 |
219 |
|
|
|
52 |
121 |
282 |
|
|
|
|
136 |
362 |
|
|
|
|
|
155 |
409 |
|
|
|
|
|
466 |
|
Gearbox length “L” (mm) |
26.5 |
|||

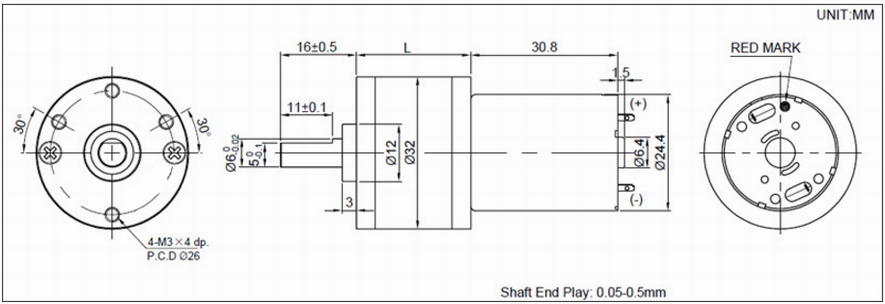

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG32C-12450 |
6.0-14.0 |
12VDC |
450 |
≤0.06 |
385 |
≤0.16 |
0.3 |
≤0.95 |
1.55 |
|
HT-SOG32C-12150 |
6.0-14.0 |
12VDC |
150 |
≤0.06 |
122 |
≤0.16 |
0.82 |
≤0.95 |
4.25 |
|
HT-SOG32C-12118 |
6.0-14.0 |
12VDC |
118 |
≤0.06 |
98 |
≤0.16 |
1.15 |
≤0.95 |
5.75 |
|
HT-SOG32C-1284 |
6.0-14.0 |
12VDC |
84 |
≤0.06 |
70 |
≤0.16 |
1.55 |
≤0.95 |
7.75 |
|
HT-SOG32C-1265 |
6.0-14.0 |
12VDC |
65 |
≤0.06 |
52 |
≤0.16 |
2.05 |
≤0.95 |
8.50 |
|
HT-SOG32C-1250 |
6.0-14.0 |
12VDC |
50 |
≤0.06 |
40 |
≤0.16 |
2.50 |
≤0.95 |
10.85 |
|
HT-SOG32C-1244 |
6.0-14.0 |
12VDC |
44 |
≤0.06 |
35 |
≤0.16 |
2.95 |
≤0.95 |
12.75 |
|
HT-SOG32C-1235 |
6.0-14.0 |
12VDC |
35 |
≤0.06 |
30 |
≤0.16 |
3.55 |
≤0.95 |
14.25 |
|
HT-SOG32C-1227 |
6.0-14.0 |
12VDC |
27 |
≤0.06 |
24 |
≤0.16 |
4.60 |
≤0.95 |
18 |
|
HT-SOG32C-1222 |
6.0-14.0 |
12VDC |
22 |
≤0.06 |
18 |
≤0.16 |
6.10 |
≤0.95 |
24 |
|
HT-SOG32C-1215 |
6.0-14.0 |
12VDC |
15 |
≤0.06 |
12 |
≤0.16 |
8.05 |
≤0.95 |
32 |
|
HT-SOG32C-1213 |
6.0-14.0 |
12VDC |
13 |
≤0.06 |
10 |
≤0.16 |
9.25 |
≤0.95 |
37 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v, 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
Tag: 12v low speed high torque motor, pololu micro gear motor, 180 rpm motor
