37mm Diameter DC Gear Motor

< >

HT-BL-SOG37B

-Motor: Brushless DC motor .
-Gearbox: Spur gearbox
-Voltage: 6~24V
-Speed: 1~600RPM
-Torque: 1~35kg.cm
-Output shaft: 6mm diameter
-Product: 24vdc 30 rpm reversible gearmotor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 6~24VDC -Speed: 1~600rpm -Torque: 1~35kg.cm	-Long lifetime -Low noise -No Spark	-Vending and Banking System -Sanitary and Cleaning -Robtics and Equipment

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	2	3	4	5	6
Gear Ratio	10	20	50	120	450
		30	70	150	490
			90	210	630
				270	810

Gearbox length “L” (mm)	24.5			29

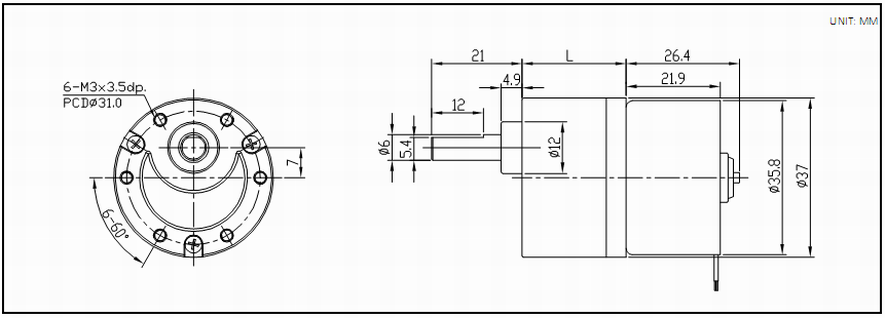

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-BL-SOG37B-24305	12.0-28.0	24VDC	305	≤0.10	235	≤0.22	0.5	≤1.15	2.6
HT-BL-SOG37B-24150	12.0-28.0	24VDC	150	≤0.10	114	≤0.22	0.85	≤1.15	4.5
HT-BL-SOG37B-24100	12.0-28.0	24VDC	100	≤0.10	78	≤0.22	1.2	≤1.15	6.2
HT-BL-SOG37B-2465	12.0-28.0	24VDC	65	≤0.10	48	≤0.22	2	≤1.15	8
HT-BL-SOG37B-2442	12.0-28.0	24VDC	42	≤0.10	31	≤0.22	2.9	≤1.15	12
HT-BL-SOG37B-2435	12.0-28.0	24VDC	35	≤0.10	26	≤0.22	3.8	≤1.15	16
HT-BL-SOG37B-2425	12.0-28.0	24VDC	25	≤0.10	18	≤0.22	5	≤1.15	20
HT-BL-SOG37B-2415	12.0-28.0	24VDC	15	≤0.10	11	≤0.22	8.2	≤1.15	33
HT-BL-SOG37B-2410	12.0-28.0	24VDC	10	≤0.10	8	≤0.22	10.5	≤1.15	42
HT-BL-SOG37B-2407	12.0-28.0	24VDC	7	≤0.10	5.5	≤0.22	16	≤1.15	64
HT-BL-SOG37B-2405	12.0-28.0	24VDC	5	≤0.10	3.6	≤0.22	25	≤1.15	80
HT-BL-SOG37B-243.5	12.0-28.0	24VDC	3.5	≤0.10	2.3	≤0.22	30	≤1.15	80

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, 6 wires are optional :
(1) Red wire: positive pole
(2) Black wire : negative pole
(3) White wire: CW/CCW control
(4) Yellow wire :FG signal
(5) Blue wire: PWM control
(6) Gree wire : Brake
