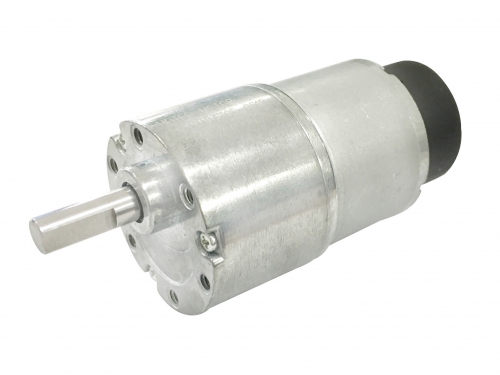

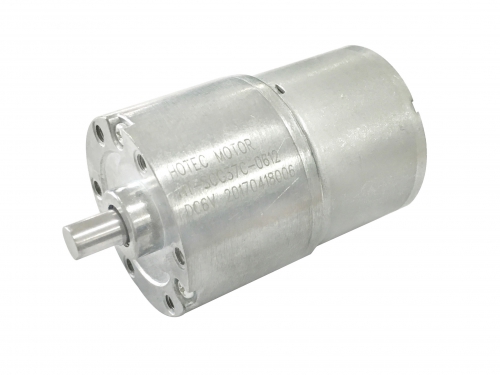

37mm Diameter DC Gear Motor

< >

HT-SOG37C

-Motor type: Brushed DC motor .
-Gearbox: Spur gearbox
-Voltage: 3-24V
-Speed: 1~600RPM
-Torque: 0.5-35kg.cm
-Output shaft: 6mm diameter
-Product: 12 volt dc motor with gear and encoder

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 3~24VDC -Speed: 1~600rpm -Torque: 0.5~35kg.cm	-Precious Carbon Brush -Precise Metal Gears -CW/CCW -Low noise	-Vending and Banking System -Sanitary and Cleaning -Robtics and Equipment

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	2	3	4	5	6
Gear Ratio	10	20	50	120	450
		30	70	150	490
			90	210	630
				270	810

Gearbox length “L” (mm)	22.5			27.5

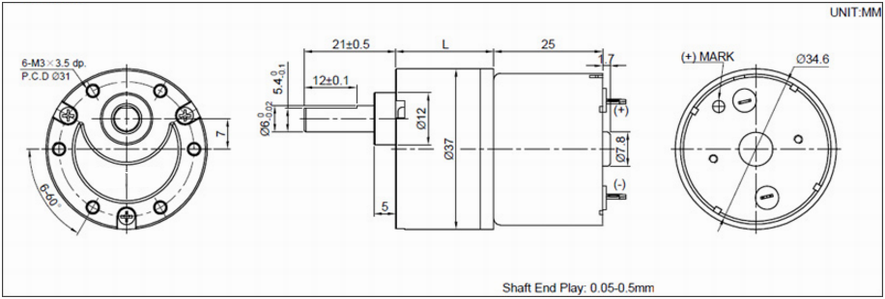

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-SOG37C-0660	4.5-7.2	6VDC	60	≤0.05	48	≤0.15	0.85	≤0.95	3.35
HT-SOG37C-0642	4.5-7.2	6VDC	42	≤0.05	35	≤0.15	1.2	≤0.95	4.85
HT-SOG37C-0632	4.5-7.2	6VDC	32	≤0.05	26	≤0.15	1.35	≤0.95	5.25
HT-SOG37C-0610	4.5-7.2	6VDC	10	≤0.05	9	≤0.15	4.05	≤0.95	20.2
HT-SOG37C-12600	6.0-12.0	12VDC	600	≤0.06	500	≤0.25	0.45	≤1.25	1.85
HT-SOG37C-12300	6.0-12.0	12VDC	300	≤0.06	250	≤0.25	0.75	≤1.25	3.85
HT-SOG37C-12200	6.0-12.0	12VDC	200	≤0.06	165	≤0.25	1.15	≤1.25	4.85
HT-SOG37C-12120	6.0-12.0	12VDC	120	≤0.06	100	≤0.25	1.75	≤1.25	8.85
HT-SOG37C-1285	6.0-12.0	12VDC	85	≤0.06	70	≤0.25	2.35	≤1.25	10.05
HT-SOG37C-1268	6.0-12.0	12VDC	68	≤0.06	57	≤0.25	3.05	≤1.25	12.25
HT-SOG37C-1240	6.0-12.0	12VDC	40	≤0.06	32	≤0.25	4.5	≤1.25	18.6
HT-SOG37C-1210	6.0-12.0	12VDC	10	≤0.06	8	≤0.25	17	≤1.25	68

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available.

Tag: 24v gear reduction motor, gearbox dc, dc motor 20 rpm
