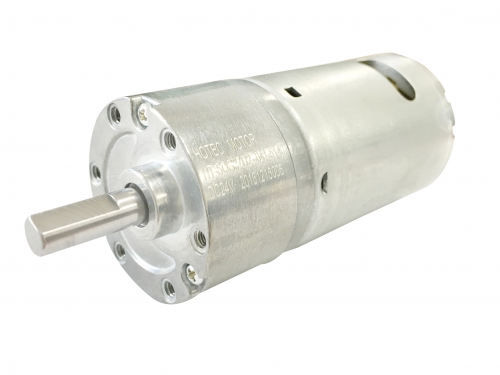

37mm Diameter DC Gear Motor
HT-SOG37D2
-Motor type: Brush electric DC motor .
-Gearbox: Spur gear reducer
-Voltage: 6~24V
-Speed: 2~600RPM
-Torque: 1~40kg.cm
-Output shaft: 6mm diameter
-Product: 12 volt electric motors with gear reduction
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 6~24VDC
-Speed: 2~600rpm
-Torque: 1~40kg.cm
-Precious Carbon Brush
-Precioius Metal Gears
-Long Lifetime
-Low Noise-Vending and Banking System
-Sanitary and Cleaning
-Robtics and Equipment-Home Appliance
Gear Ratio
|
Gear Ratio Stage |
2 |
3 |
4 |
5 |
6 |
|
Gear Ratio |
10 |
20 |
50 |
120 |
450 |
|
|
30 |
70 |
150 |
490 |
|
|
|
|
90 |
210 |
630 |
|
|
|
|
|
270 |
810 |
|
|
|
|
|
|
|
|
|
Gearbox length “L” (mm) |
24.5 |
29 |
|||

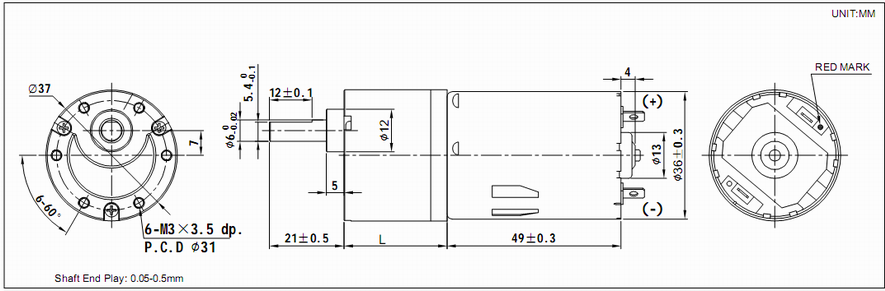

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG37D2-12610 |
6.0-14.0 |
12VDC |
610 |
≤0.36 |
505 |
≤1.45 |
1.45 |
≤7.35 |
6.55 |
|
HT-SOG37D2-12450 |
6.0-14.0 |
12VDC |
450 |
≤0.36 |
382 |
≤1.45 |
1.85 |
≤7.35 |
8.5 |
|
HT-SOG37D2-12305 |
6.0-14.0 |
12VDC |
305 |
≤0.36 |
248 |
≤1.45 |
2.5 |
≤7.35 |
10.5 |
|
HT-SOG37D2-12245 |
6.0-14.0 |
12VDC |
245 |
≤0.36 |
190 |
≤1.45 |
3.6 |
≤7.35 |
12.5 |
|
HT-SOG37D2-12200 |
6.0-14.0 |
12VDC |
200 |
≤0.36 |
165 |
≤1.45 |
4 |
≤7.35 |
16 |
|
HT-SOG37D2-12125 |
6.0-14.0 |
12VDC |
125 |
≤0.36 |
100 |
≤1.45 |
5.45 |
≤7.35 |
22.5 |
|
HT-SOG37D2-1290 |
6.0-14.0 |
12VDC |
90 |
≤0.36 |
75 |
≤1.45 |
7.6 |
≤7.35 |
30 |
|
HT-SOG37D2-1285 |
6.0-14.0 |
12VDC |
85 |
≤0.36 |
70 |
≤1.45 |
7.9 |
≤7.35 |
32 |
|
HT-SOG37D2-1265 |
6.0-14.0 |
12VDC |
65 |
≤0.36 |
55 |
≤1.45 |
10 |
≤7.35 |
40 |
|
HT-SOG37D2-1250 |
6.0-14.0 |
12VDC |
50 |
≤0.36 |
42 |
≤1.45 |
12.5 |
≤7.35 |
50 |
|
HT-SOG37D2-1230 |
6.0-14.0 |
12VDC |
30 |
≤0.36 |
23 |
≤1.45 |
20 |
≤7.35 |
80* |
|
HT-SOG37D2-1212 |
6.0-14.0 |
12VDC |
12 |
≤0.36 |
10 |
≤1.45 |
40* |
≤7.35 |
80* |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
