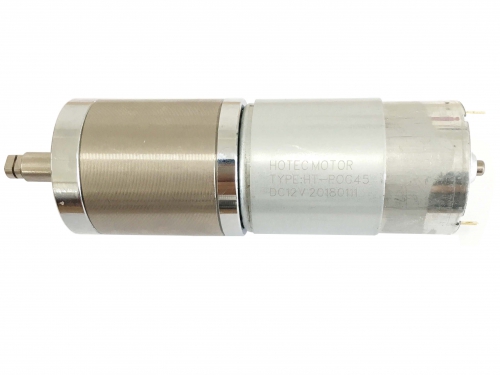

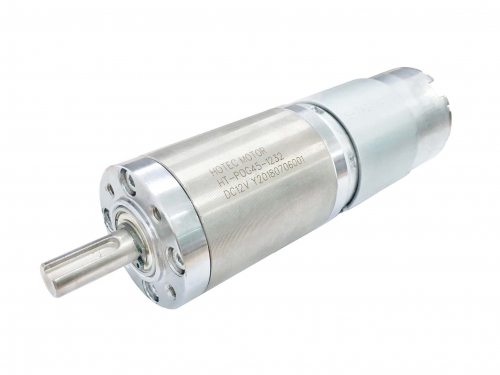

45mm Diameter DC Gear Motor

HT-POG45

-Motor Type: Brushed DC motor
-Gearbox: Planetary gearbox
-Voltage: 6~24V
-Speed: 0.5~1500RPM
-Torque: 1~150kg.cm
-Output shaft: 10 mm Diameter
-Product: 12v 200 rpm plantary geared motor 775 with encoder

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 6.0-24VDC
    -Speed: 0.5-1500rpm
    -Torque: 1-150kg.cm
    -High Torque
    -10mm Shaft
    -Precise Metal Gears
    -CW/CCW
    -Precise Equipment & machine
    -Banking and Vending System
    -Electric Valve and Robot

  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

1

2

3

4

5

Gear Ratio

4

10

32

139

700



13.7

50

188

977



19

71

264

1367





100

369

1911







516

2672











Gearbox Length(L)mm

33.6

45

56.20

67.50

78.8

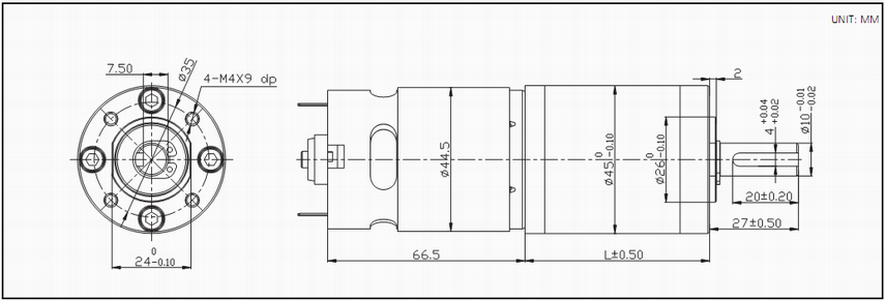

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

mA

r/min

A

kg.cm

A

kg.cm

HT-POG45-12900

9-15V

12VDC

900

450

810

2.0

2.3

6.5

8.6

HT-POG45-121450

9-15V

12VDC

450

450

360

2.0

6

6.5

24

HT-POG45-12166

9-15V

12VDC

166

450

122

2.0

11

6.5

44

HT-POG45-1288

9-15V

12VDC

88

450

70

2.0

18

6.5

76

HT-POG45-1263

9-15V

12VDC

63

450

46

2.0

26

6.5

100

HT-POG45-1245

9-15V

12VDC

45

450

33

2.0

36

6.5

150

HT-POG45-1232

9-15V

12VDC

32

450

23.5

2.0

51

6.5

200

HT-POG45-1224

9-15V

12VDC

24

450

15.8

2.0

68

6.5

300*

HT-POG45-1217

9-15V

12VDC

17

450

11

2.0

86

6.5

300*

HT-POG45-1212

9-15V

12VDC

12

450

8

2.0

120

6.5

300*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.

Tag: 775 motor with gearbox, 12 volt dc planetary geared motor, 775 gearbox
