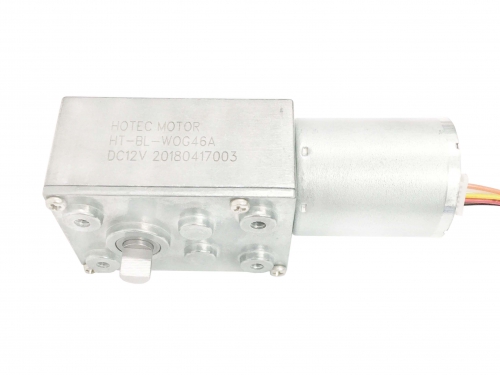

46x32mm Gearbox DC Motor
HT-BL-WOG46
-Motor type: Brushless DC Motor
-Gear Box : Worm Drive Gear
-Voltage: 3-24VDC
-Speed: 1~120 RPM
-Torque: 1~35kg.cm
-Output shaft: 6mm diameter
-Product: 6v 12v dc brushless motors worm geared encoder。
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3~24VDC
-Speed: 0.8~120 rpm
-Torque: 1~35kg.cm
-Brushless DC motors
-Precise Metal Gears
-CW/CCW
- Quite Low noise
- Long lifetime-Electric Blind/Electric Curtain Opener
-Banking and Vending System
-Equipment and Apparatus
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
|
Gear Ratio |
49 |
350 |
1587 |
|
102 |
700 |
2450 |
|
|
158 |
|
|
|
|
205 |
|
|
|
|
317 |
|
|

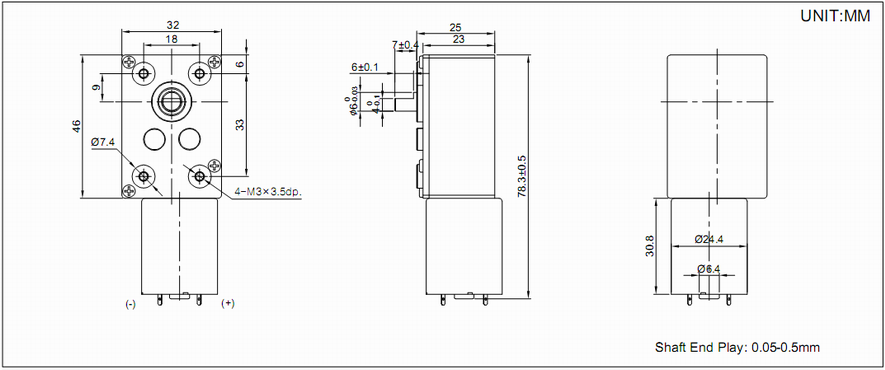

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-BL-WOG46-1232 |
9.0-14.0 |
12VDC |
32 |
≤0.06 |
25 |
≤0.23 |
2.8 |
≤1.25 |
11.8 |
|
HT-BL-WOG46-1220 |
9.0-14.0 |
12VDC |
20 |
≤0.06 |
16 |
≤0.23 |
4.2 |
≤1.26 |
16.8 |
|
HT-BL-WOG46-128.5 |
9.0-14.0 |
12VDC |
8.5 |
≤0.06 |
7 |
≤0.23 |
8.6 |
≤1.26 |
52 |
|
HT-BL-WOG46-1204 |
9.0-14.0 |
12VDC |
4 |
≤0.06 |
3 |
≤0.23 |
18.5 |
≤1.26 |
74 |
|
HT-BL-WOG46-122.5 |
9.0-14.0 |
12VDC |
2.5 |
≤0.06 |
2 |
≤0.23 |
30 |
≤1.26 |
90 |
|
HT-BL-WOG46-2430 |
18.0-24.0 |
24VDC |
30 |
≤0.02 |
22 |
≤0.05 |
1.1 |
≤0.16 |
4.2 |
|
HT-BL-WOG46-2420 |
18.0-24.0 |
24VDC |
20 |
≤0.07 |
15 |
≤0.16 |
2.4 |
≤0.16 |
9.5 |
|
HT-BL-WOG46-2409 |
18.0-24.0 |
24VDC |
9 |
≤0.07 |
7.6 |
≤0.16 |
5.2 |
≤0.16 |
21 |
|
HT-BL-WOG46-0308 |
2.5-5.0 |
3VDC |
8 |
≤0.12 |
6.5 |
≤0.62 |
8.4 |
≤1.7 |
25.5 |
|
HT-BL-WOG46-0305 |
2.5-5.0 |
3VDC |
5 |
≤0.12 |
3.5 |
≤0.62 |
13.5 |
≤1.7 |
55 |
|
HT-BL-WOG46-0303 |
2.5-5.0 |
3VDC |
3 |
≤0.12 |
2.2 |
≤0.62 |
25 |
≤1.7 |
90 |
|
HT-BL-WOG46-031.5 |
2.5-5.0 |
3VDC |
1.5 |
≤0.12 |
1 |
≤0.62 |
30 |
≤1.7 |
90 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, Terminal options:
(1) Red wire: positive pole
(2) Black wire : negative pole
(3) White wire: CW/CCW control
(4) Yellow wire :FG signal
(5) Blue wire: PWM control
(6) Gree wire : Brake
