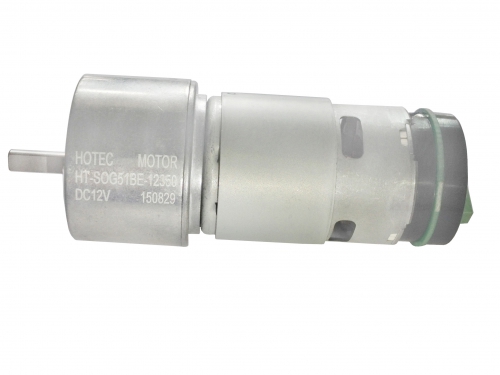

50mm Diameter DC Gear Motor
HT-SOG51B
-Motor type: Brushed DC motor .
-Gearbox: Spur gearbox
-Voltage: 6~24V
-Speed: 2~1200RPM
-Torque: 1~50kg.cm
-Output shaft: 6.35mm diameter
-Product: 30rpm 12v dc geared motors
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 6~24VDC
-Speed: 1~1200rpm
-Torque: 1~50kg.cm-Precious Carbon Brush
-Precise Metal Gears
-CW/CCW
-High Torque-Vending and ATM
-Equipment and Apparatus
-Robotic
Gear Ratio
|
Gear Ratio Stage |
2 |
3 |
4 |
5 |
6 |
|
Gear Ratio |
6 |
20 |
65.5 |
218 |
728 |
|
10 |
33 |
110 |
367 |
1223 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gearbox length “L” (mm) |
37.5 |
||||

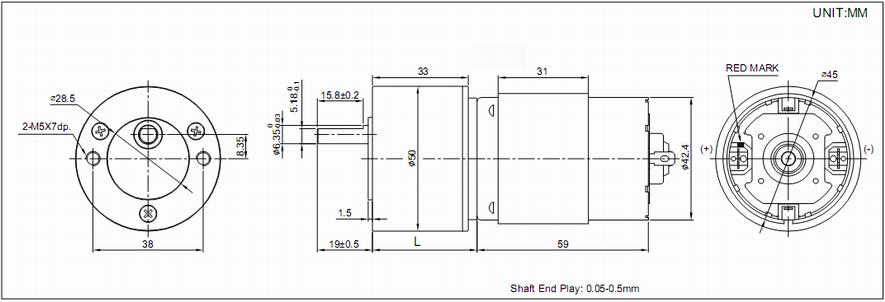

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG51B-121200 |
9.0-28.0 |
12VDC |
1200 |
≤0.7 |
1000 |
≤6.15 |
2.4 |
≤30.5 |
10 |
|
HT-SOG51B-12900 |
9.0-28.0 |
12VDC |
900 |
≤0.7 |
810 |
≤6.15 |
3.25 |
≤30.5 |
14 |
|
HT-SOG51B-12720 |
9.0-28.0 |
12VDC |
720 |
≤0.7 |
610 |
≤6.15 |
4.05 |
≤30.5 |
16 |
|
HT-SOG51B-12385 |
9.0-28.0 |
12VDC |
385 |
≤0.7 |
290 |
≤6.15 |
7.15 |
≤30.5 |
30 |
|
HT-SOG51B-12200 |
9.0-28.0 |
12VDC |
200 |
≤0.7 |
170 |
≤6.15 |
11 |
≤30.5 |
44 |
|
HT-SOG51B-12115 |
9.0-28.0 |
12VDC |
115 |
≤0.7 |
88 |
≤6.15 |
22.5 |
≤30.5 |
85 |
|
HT-SOG51B-1265 |
9.0-28.0 |
12VDC |
65 |
≤0.7 |
50 |
≤6.15 |
36 |
≤30.5 |
150 |
|
HT-SOG51B-1233 |
9.0-28.0 |
12VDC |
33 |
≤0.7 |
25 |
≤6.15 |
60 |
≤30.5 |
160* |
|
HT-SOG51B-1220 |
9.0-28.0 |
12VDC |
20 |
≤0.7 |
14 |
≤6.15 |
71* |
≤30.5 |
160* |
|
HT-SOG51B-1210 |
9.0-28.0 |
12VDC |
10 |
≤0.7 |
7.5 |
≤6.15 |
71* |
≤30.5 |
160* |
|
HT-SOG51B-1206 |
9.0-28.0 |
12VDC |
6 |
≤0.7 |
4 |
≤6.15 |
71* |
≤30.5 |
160* |
|
HT-SOG51B-1225 |
9.0-28.0 |
12VDC |
25 |
≤0.7 |
18 |
≤6.15 |
58* |
≤30.5 |
160* |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
