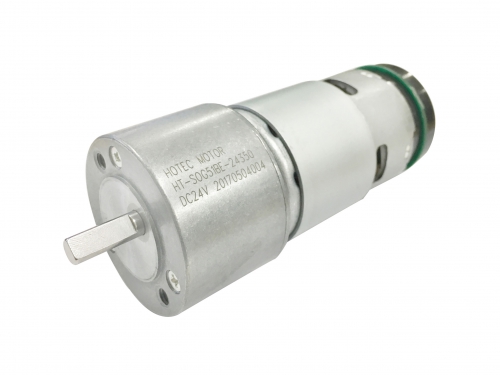

50mm Diameter DC Gear Motor
HT-SOG51C
-Motor Type: Brushed DC Motor
-Gearbox: Spur gear reducer
-Voltage: 6~24V
-Speed: 2~1200RPM
-Torque: 1~50kg.cm
-Output shaft: 6.35mm diameter
-Product: dc small gear motor high torque with encoder
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 6~24VDC
-Speed: 2~1200rpm
-Torque: 1~50kg.cm-High Torque
-Long Lifetime
-CW/CCW
-Precise Metal Gears-ATM Machines
-Equipment and Apparatus
-Auto Dispenser
-Robotics
Gear Ratio
|
Gear Ratio Stage |
2 |
3 |
4 |
5 |
6 |
|
Gear Ratio |
6 |
20 |
65.5 |
218 |
728 |
|
10 |
33 |
110 |
367 |
1223 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gearbox length “L” (mm) |
37.5 |
||||

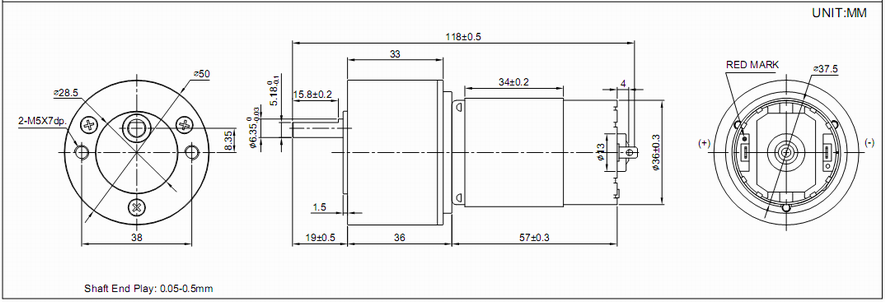

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG51C-121200 |
9.0-28.0 |
24VDC |
1016 |
≤0.25 |
860 |
≤1.0 |
1.4
|
≤6 |
17.7 |
|
HT-SOG51C-12700 |
9.0-28.0 |
24VDC |
600 |
≤0.25 |
520 |
≤1.0 |
2.4 |
≤6 |
29.7 |
|
HT-SOG51C-12375 |
9.0-28.0 |
24VDC |
300 |
≤0.25 |
258 |
≤1.0 |
4.3 |
≤6 |
59 |
|
HT-SOG51C-12210 |
9.0-28.0 |
24VDC |
181 |
≤0.25 |
150 |
≤1.0 |
7.4 |
≤6 |
99 |
|
HT-SOG51C-12110 |
9.0-28.0 |
24VDC |
50 |
≤0.25 |
46 |
≤1.0 |
21 |
≤6 |
196 |
|
HT-SOG51C-1264 |
9.0-28.0 |
24VDC |
27 |
≤0.25 |
23 |
≤1.0 |
38 |
≤6 |
330 |
1, The speed and torque are adjustable ;
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support :cables and connectors available.
7, Magnet encoder: 3PPR and 7PPR
Tag: pittman gear motor, gear motor with encoder, 12v dc motor 1000 rpm
