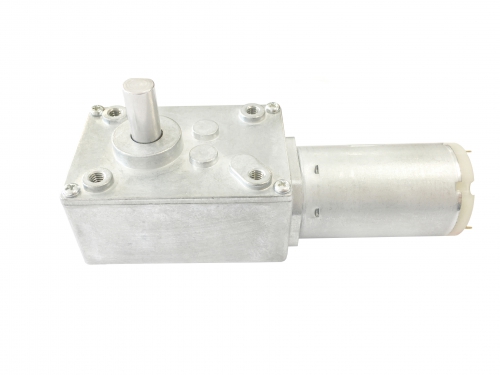

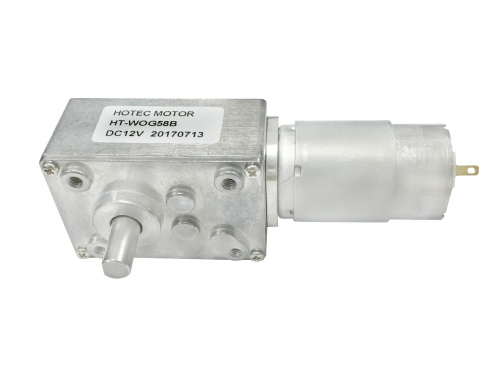

58X46mm Gearbox DC Motor
HT-WOG58B
-Motor Type: Brushed DC Motor
-Gearbox :Worm Gear Reduction
-Voltage: 6-24V
-Speed: 2~120 RPM
-Torque: 1~80kg.cm
-Output shaft: 8mm Diameter
-Product: 12V 3rpm high torque small worm gear reversible motors
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 6~24VDC
-Speed: 1~120 rpm
-Torque: 1~80kg.cm
-Precise Carbon Brush
-Self-lock
-CW/CCW
-Low Backlash
-Quite low noise-Specail for Electric Curtain and Elecctric Blinds
-Banking and Vending System
-Office Automations
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
|
Gear Ratio |
49 |
506 |
1269 |
|
74 |
634 |
|
|
|
100 |
|
|
|
|
217 |
|
|
|
|
291 |
|
|

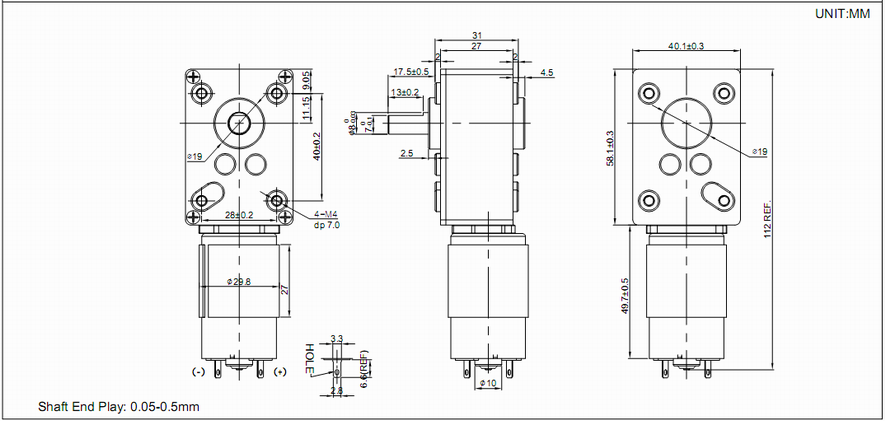

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-WOG58B-12122 |
9.0-14.0 |
12VDC |
122 |
≤0.20 |
100 |
≤0.50 |
3.5 |
≤4.05 |
15 |
|
HT-WOG58B-1260 |
9.0-14.0 |
12VDC |
60 |
≤0.20 |
50 |
≤0.50 |
7 |
≤4.05 |
30 |
|
HT-WOG58B-1227 |
9.0-14.0 |
12VDC |
27 |
≤0.20 |
23 |
≤0.50 |
14.5 |
≤4.05 |
60 |
|
HT-WOG58B-1220 |
9.0-14.0 |
12VDC |
20 |
≤0.20 |
17 |
≤0.50 |
19 |
≤4.05 |
80 |
|
HT-WOG58B-1228 |
9.0-14.0 |
12VDC |
28 |
≤0.20 |
23 |
≤0.50 |
38 |
≤4.05 |
150 |
|
HT-WOG58B-1211 |
9.0-14.0 |
12VDC |
11 |
≤0.20 |
10 |
≤0.50 |
32 |
≤4.05 |
120 |
|
HT-WOG58B-1291 |
9.0-14.0 |
12VDC |
91 |
≤0.20 |
67 |
≤0.50 |
4 |
≤4.05 |
25 |
|
HT-WOG58B-1245 |
9.0-14.0 |
12VDC |
45 |
≤0.18 |
36 |
≤0.50 |
4.8 |
≤4.05 |
30 |
|
HT-WOG58B-1215 |
9.0-14.0 |
12VDC |
15 |
≤0.18 |
12 |
≤0.45 |
14 |
≤3.65 |
60 |
|
HT-WOG58B-1207 |
9.0-14.0 |
12VDC |
7 |
≤0.18 |
5 |
≤0.45 |
31 |
≤3.65 |
120 |
|
HT-WOG58B-123.5 |
9.0-14.0 |
12VDC |
3.5 |
≤0.18 |
3 |
≤0.45 |
61 |
≤3.65 |
150 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized ;
4, The voltage can be 6v,9v,12v,24v.
5, This gear motor can be equipped with encoders .
6, Terminals support :cables and connectors available.
Tag: 31zy, high torque worm gearbox, worm gear dc motor 24v
