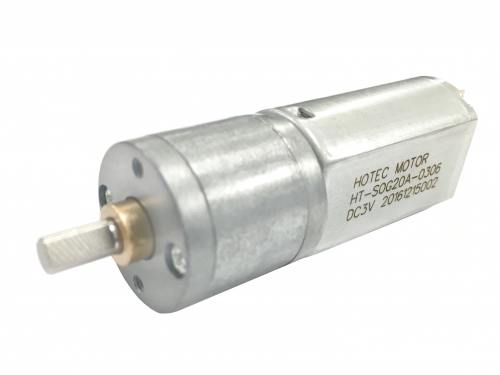

Round Gearbox Motor

< >

HT-SOG20A

-Size: 20mm Diameter
-Gearbox: Spur Gearbox
-Voltage: 1~12V
-Speed:5~1600 RPM
-Torque:0.1~6kg.cm
-Output shaft: 4mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 1~12VDC -Speed: 5~1600 rpm -Torque 0.1~6kg.cm	-Precious Metal/carbon Brush -Precise Metal Gears -CW/CCW -Low noise	-Security and Safe Industry -Home and office Automation -Electric Valve

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	2	3	4	5
Gear Ratio	10	50	100	250
	12.5	62	125	313
	25	78	156	391
	31		195	488
Gearbox length “L” (mm)	16	17.5	19	20.5

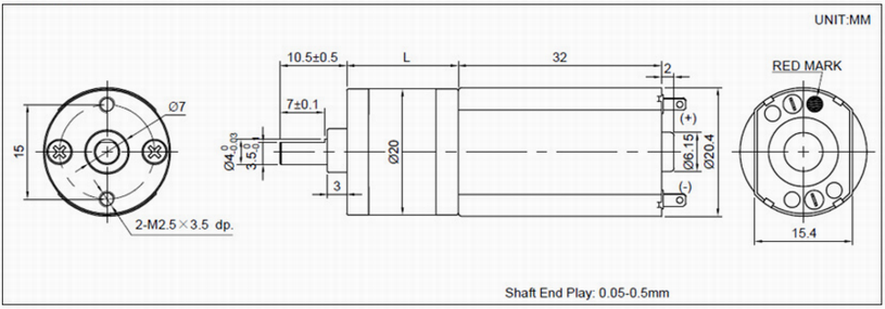

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-SOG20A-12700	3.0-14.0	12VDC	700	≤0.05	580	≤0.16	0.07	≤0.7	0.4
HT-SOG20A-12550	3.0-14.0	12VDC	550	≤0.05	465	≤0.16	0.09	≤0.7	0.5
HT-SOG20A-12200	3.0-14.0	12VDC	200	≤0.05	160	≤0.16	0.2	≤0.7	0.9
HT-SOG20A-12142	3.0-14.0	12VDC	142	≤0.05	105	≤0.16	0.35	≤0.7	1.3
HT-SOG20A-12100	3.0-14.0	12VDC	100	≤0.05	81	≤0.16	0.4	≤0.7	1.4
HT-SOG20A-1280	3.0-14.0	12VDC	80	≤0.05	60	≤0.16	0.5	≤0.7	2.2
HT-SOG20A-1268	3.0-14.0	12VDC	68	≤0.05	49	≤0.16	0.6	≤0.7	2.4
HT-SOG20A-1255	3.0-14.0	12VDC	55	≤0.05	38	≤0.16	0.7	≤0.7	2.6
HT-SOG20A-1243	3.0-14.0	12VDC	43	≤0.05	30	≤0.16	0.9	≤0.7	3.2
HT-SOG20A-0618	3.0-9.0	6VDC	18	≤0.10	12	≤0.25	2.1	≤1.0	8.2
HT-SOG20A-0612	3.0-9.0	6VDC	12	≤0.10	9	≤0.25	2.6	≤1.0	8.5
HT-SOG20A-0315	1.5-6.0	3VDC	22	≤0.20	14	≤0.45	1.8	≤1.5	7.5

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
