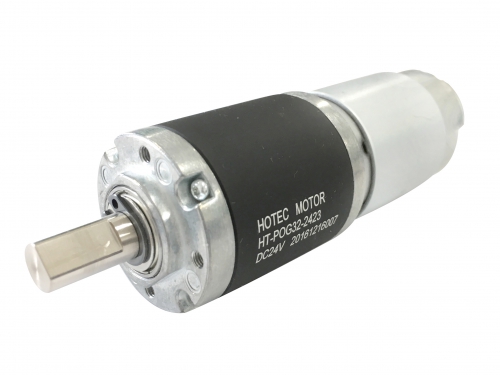

Planetary Gear Motor

< >

HT-POG32

-Motor type :Brushed DC motor .
-Gear box Size:32mm Diameter
-Voltage: 6-24V
-Speed:1~1500 RPM
-Torque:0.5-50kg.cm
-Output shaft: 8mm diameter
-Product: 32mm 24 volt micro dc motor planetary gear with encoder

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 6.0-24VDC -Speed: 1-1500 rpm -Torque: 0.5-50Kg.cm	-Precious Carbon Brush -Pecise metal gearst -CW/CCW -Long lifetime	-Precise Equipment & machine -Banking and Vending System -Electric Valve

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	1	2	3	4	5
Gear Ratio	4	14	51	189	977
	5	19	71	264	1367
		27	100	369	1911
			139	519	2672
				721	3736

Gearbox length “L” (mm)	21.1	27.3	33.5	39.7	46

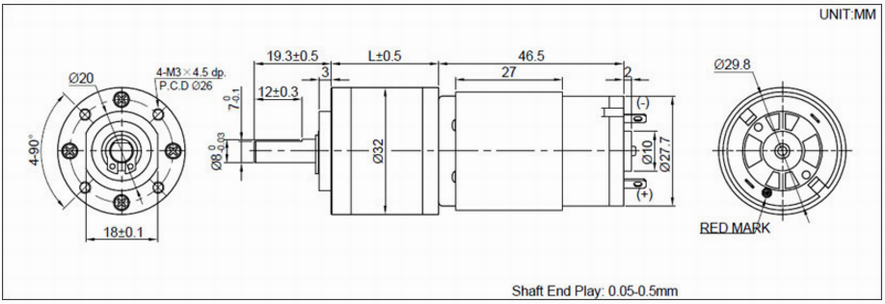

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-POG32A-121600	9.0-14.0	12VDC	1600	≤0.23	1400	≤1.25	0.35	≤6.35	1.6
HT-POG32A-12430	9.0-14.0	12VDC	430	≤0.23	370	≤1.25	1.2	≤6.35	4.8
HT-POG32A-12320	9.0-14.0	12VDC	320	≤0.23	275	≤1.25	1.9	≤6.35	7.6
HT-POG32A-12225	9.0-14.0	12VDC	225	≤0.23	190	≤1.25	2.9	≤6.35	12.6
HT-POG32A-12120	9.0-14.0	12VDC	120	≤0.23	95	≤1.25	3.7	≤6.35	15.5
HT-POG32A-1285	9.0-14.0	12VDC	85	≤0.23	66	≤1.25	5.3	≤6.35	20.5
HT-POG32A-1260	9.0-14.0	12VDC	60	≤0.23	45	≤1.25	7.2	≤6.35	28.6
HT-POG32A-1245	9.0-14.0	12VDC	45	≤0.23	36	≤1.25	14	≤6.35	60
HT-POG32A-1230	9.0-14.0	12VDC	30	≤0.23	26	≤1.25	18.5	≤6.35	60
HT-POG32A-1223	9.0-14.0	12VDC	23	≤0.23	19	≤1.25	25	≤6.35	60*
HT-POG32A-1215	9.0-14.0	12VDC	15	≤0.23	13	≤1.25	35	≤6.35	60*
HT-POG32A-124.5	9.0-14.0	12VDC	4.5	≤0.23	3.6	≤1.25	40*	≤6.35	60*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
