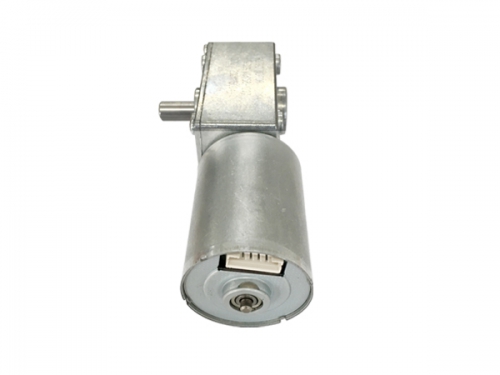

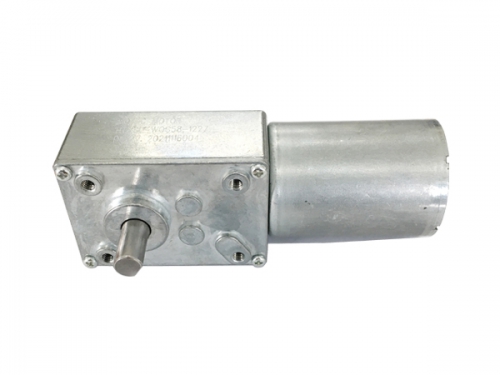

Right Angle Gearbox Motor
HT-BL-WOG58
-Gear Reducer Size: 58x46 mm
-Motor Type: BLDC Motor
-Voltage: 6-24V
-Speed: 2~120 RPM
-Torque: 1~80kg.cm
-Output shaft: 8mm Diameter
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 6~24VDC
-Speed: 1~120 rpm
-Torque: 1~80kg.cm
-Brushless DC motor
-Self-lock
-CW/CCW
-Low Backlash
-Quite low noise
- Long Life Span-Specail for Electric Curtain and Elecctric Blinds
-Banking and Vending System
-Office Automations
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
|
Gear Ratio |
49 |
506 |
1269 |
|
74 |
634 |
|
|
|
100 |
|
|
|
|
217 |
|
|
|
|
291 |
|
|

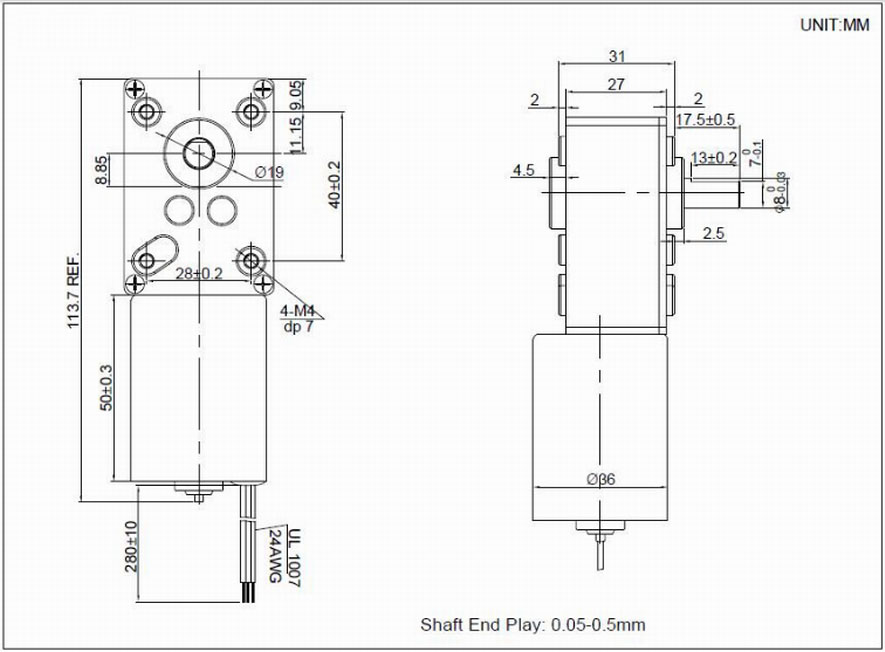

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-BL WOG58-24122 |
9.0-14.0 |
12VDC |
120 |
≤0.40 |
105 |
≤1.50 |
10 |
≤3.5 |
40 |
|
HT-BL-WOG58-2420 |
9.0-14.0 |
12VDC |
80 |
≤0.40 |
70 |
≤1.50 |
15 |
≤3.5 |
56 |
|
HT-BL-WOG58-2409 |
9.0-14.0 |
12VDC |
65 |
≤0.40 |
55 |
≤1.50 |
24 |
≤3.5 |
88 |
|
HT-BL-WOG58-1290 |
9.0-14.0 |
12VDC |
28 |
≤0.40 |
23 |
≤1.50 |
36 |
≤3.5 |
120 |
|
HT-BL-WOG58-1260 |
9.0-14.0 |
12VDC |
11 |
≤0.40 |
10 |
≤1.50 |
80 |
≤3.5 |
200 |
|
HT-BL-WOG58-1245 |
9.0-14.0 |
12VDC |
6 |
≤0.22 |
4.5 |
≤0.88 |
50 |
≤2.8 |
180 |
|
HT-BL-WOG58-1220 |
9.0-14.0 |
12VDC |
4 |
≤0.22 |
3 |
≤0.88 |
60 |
≤2.8 |
180 |
|
HT-BL-WOG58-123.5 |
9.0-14.0 |
12VDC |
2 |
≤0.22 |
1.7 |
70 |
≤2.8 |
180 |
|
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v, 9v, 12v, 24v.
5, Terminal options:
(1) Red wire: positive pole
(2) Black wire : negative pole
(3) White wire: CW/CCW control
(4) Yellow wire :FG signal
(5) Blue wire: PWM control
(6) Gree wire : Brake
