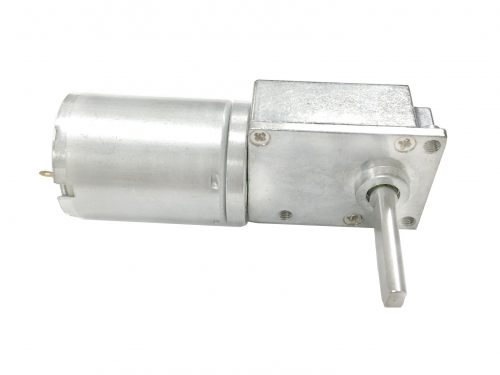

Right Angle Gearbox Motor
HT-WOG34B
-Size: 34x25 mm
-Motor Type: Brush DC Motor
-Voltage: 3-24V
-Speed: 15- 150 RPM
-Torque: 0.1-6kg.cm
-Output shaft: 5mm Diameter
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3~24VDC
-Speed: 15~150 pm
-Torque: 0.1~6kg.cm
-Precise metal brush
-Self-lock
-CW/CCW
-Low Backlash
-Quite low noise-Electric Blind/Shutter/Curtain.
-Valves And Actuators.
-Robotics
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
|
Gear Ratio |
66 |
|
|
|
131 |
|
|
|
|
|
|
|

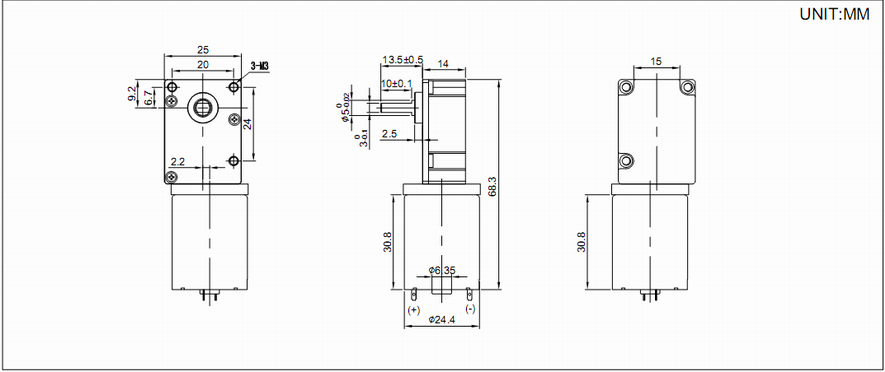

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-WOG34B |
9.0-14.0 |
12VDC |
91 |
≤0.04 |
76 |
≤0.15 |
0.95 |
≤1.5 |
3.6 |
|
HT-WOG34B |
9.0-14.0 |
12VDC |
45 |
≤0.04 |
38 |
≤0.15 |
1.9 |
≤1.5 |
8 |
|
HT-WOG34B |
3.0-6.0 |
6VDC |
22 |
≤0.06 |
18 |
≤0.35 |
0.9 |
≤2.5 |
4.2 |
|
HT-WOG34B |
12.0-24.0 |
24VDC |
34 |
≤0.035 |
26 |
≤0.10 |
1.45 |
≤0.7 |
7.8 |
|
HT-WOG34B |
12.0-24.0 |
24VDC |
45 |
≤0.035 |
38 |
≤0.10 |
2 |
≤0.7 |
5 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.

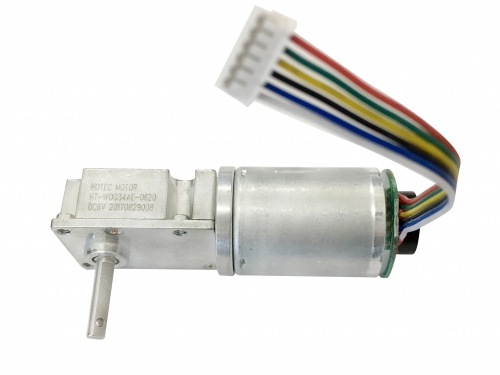

5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
Tag: mini worm gear motor, dc worm gear motor, worm gear motor with encoder
