Spur Gear Motor

HT-SOG25B

-Motor type: Brushed DC motor .
-Gearbox Size: 25mm Diameter
-Voltage: 1-12V
-Speed: 3~600RPM
-Torque: 0.2~6kg.cm
-Output shaft: 4mm diameter
-Product:  12v 24v 25mm dc gear motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 1~12VDC
    -Speed: 3~600rpm
    -Torque: 0.2~6kg.cm
    -Pecious Metal/Carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Safe and Electronic Lock
    -Beautry and Health Care
    -Equipment and Appratus
    -Payment System
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

4

5

6

7

8

Gear Ratio

13

29

55

121

266

21

41

63

139

307



47

89

171

376





103

197

433







226

499

Gearbox length  “L” (mm)

23

27

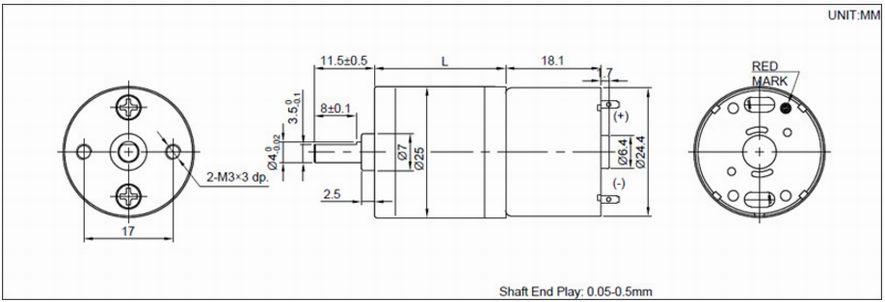

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG25B-12452

6.0-12.0

12VDC

452

≤0.05

402

≤0.22

0.1

≤1.12

0.52

HT-SOG25B-12356

6.0-12.0

12VDC

356

≤0.05

310

≤0.22

0.16

≤1.12

0.85

HT-SOG25B-12265

6.0-12.0

12VDC

265

≤0.05

212

≤0.22

0.25

≤1.12

1.15

HT-SOG25B-6195

1.0-8.0

6VDC

195

≤0.05

160

≤0.22

0.3

≤1.12

1.58

HT-SOG25B-652

1.0-8.0

6VDC

152

≤0.05

124

≤0.22

0.32

≤1.12

1.65

HT-SOG25B-6120

1.0-8.0

6VDC

120

≤0.05

95

≤0.22

0.42

≤1.12

2.2

HT-SOG25B-0690

1.0-8.0

6VDC

90

≤0.05

70

≤0.22

0.52

≤1.12

2.65

HT-SOG25B-0670

1.0-8.0

6VDC

70

≤0.05

55

≤0.22

0.63

≤1.12

3.15

HT-SOG25B-0655

1.0-8.0

6VDC

55

≤0.05

42

≤0.22

0.82

≤1.12

4.35

HT-SOG25B-0640

1.0-8.0

6VDC

40

≤0.05

30

≤0.22

1.0

≤1.12

5.1

HT-SOG25B-0330

1.0-6.0

3VDC

30

≤0.05

22

≤0.22

1.3

≤1.12

6.5

HT-SOG25B-0310

1.0-6.0

3VDC

10

≤0.05

6

≤0.22

3.25

≤1.12

16

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.

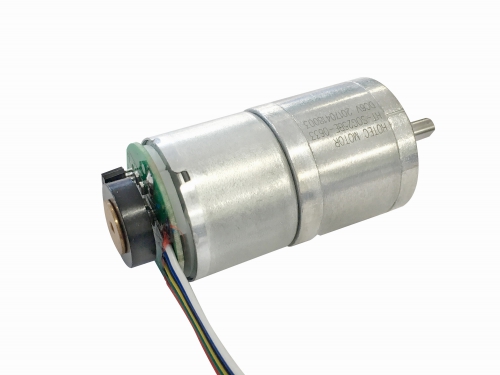

5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
