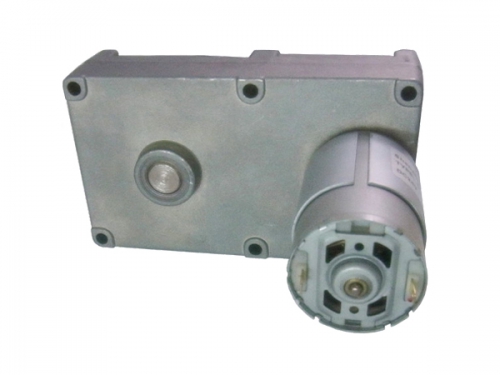

119x70mm DC Gearbox Motor
HT-FOG19A
-Motor type :Brushed DC motor .
-Gearbox :Spur gearbox
-Voltage:12-36VDC
-Speed: 0.1-100RPM
-Torque: 10-500kg.cm
-Output shaft: 8mm diameter
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 12~36VDC
-Speed: 0.1~100rpm
-Torque: 10~500kg.cm
-Precious Carbonl Brush
-Precise Metal Gears
-CW/CCW
-Low noise-Auto Eqipment and Apparatus
-Electric Valve and Acuator
-Vending and Banking
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
6 |
|
Gear Ratio |
127 |
389 |
1269 |
3385 |
|
251 |
590 |
1601 |
5078 |
|
|
|
722 |
1929 |
|
|
|
|
897 |
|
|
|
|
|
|
|
|

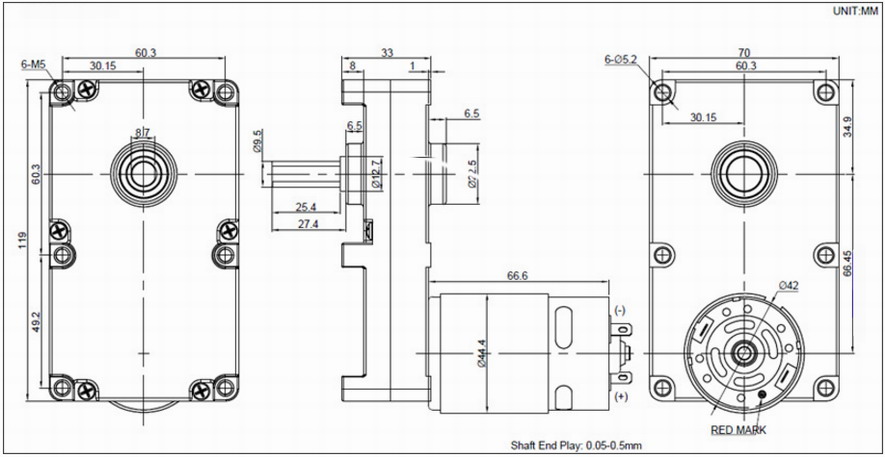

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-FOG119A-2450 |
12.0-28.0 |
24VDC |
50 |
≤0.75 |
35 |
≤3.45 |
70 |
≤16.8 |
280 |
|
HT-FOG119A-2426 |
12.0-28.0 |
24VDC |
26 |
≤0.75 |
18.5 |
≤3.45 |
176 |
≤16.8 |
500 |
|
HT-FOG119A-2420 |
12.0-28.0 |
24VDC |
20 |
≤0.75 |
15.5 |
≤3.45 |
195 |
≤16.8 |
600* |
|
HT-FOG119A-2416 |
12.0-28.0 |
24VDC |
16 |
≤0.75 |
12 |
≤3.45 |
206 |
≤16.8 |
600* |
|
HT-FOG119A-2410 |
12.0-28.0 |
24VDC |
10 |
≤0.75 |
7.5 |
≤3.45 |
300* |
≤16.8 |
600* |
|
HT-FOG119A-2408 |
12.0-28.0 |
24VDC |
8 |
≤0.75 |
6 |
≤3.45 |
300* |
≤16.8 |
600* |
|
HT-FOG119A-246.5 |
12.0-28.0 |
24VDC |
6.5 |
≤0.75 |
4.5 |
≤3.45 |
300* |
≤16.8 |
600* |
|
HT-FOG119A-244.5 |
12.0-28.0 |
24VDC |
4.5 |
≤0.75 |
3.2 |
≤3.45 |
300* |
≤16.8 |
600* |
|
HT-FOG119A-2404 |
12.0-28.0 |
24VDC |
4 |
≤0.75 |
2.7 |
≤3.45 |
300* |
≤16.8 |
600* |
|
HT-FOG119A-2403 |
12.0-28.0 |
24VDC |
3 |
≤0.75 |
1.8 |
≤3.45 |
300* |
≤16.8 |
600* |
|
HT-FOG119A-241.8 |
12.0-28.0 |
24VDC |
1.8 |
≤0.75 |
1.3 |
≤3.45 |
300* |
≤16.8 |
600* |
|
HT-FOG119A-241.2 |
12.0-28.0 |
24VDC |
1.2 |
≤0.75 |
0.8 |
≤3.45 |
300* |
≤16.8 |
600* |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available.
Tag: double shaft gearbox, aluminum gear motor, flange mounted gear motor
