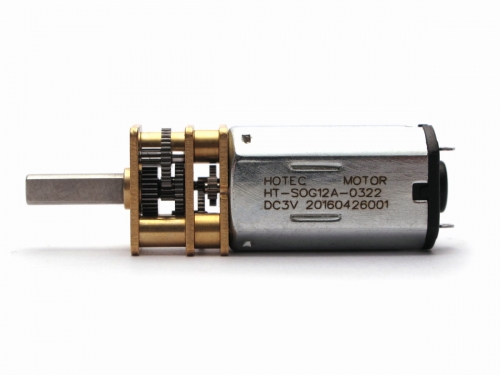

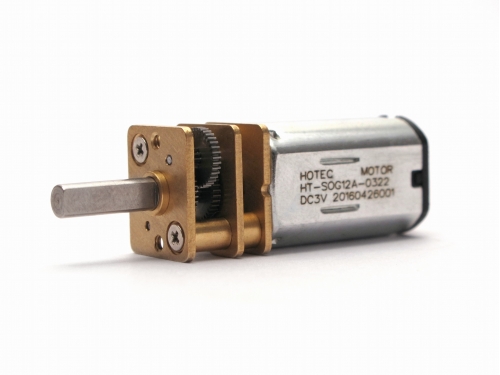

12mm Diameter DC Gear Motor

< >

HT-SOG12A

-Motor type : Brushed DC motor .
-Gearbox: Spur gearbox
-Voltage: 1~12V
-Speed: 5~2000RPM
-Torque: 0.02kg.cm~2kg.cm
-Output shaft: 3mm diameter
-Product: 6v 12v n20 gear box reduction motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key features	Typical application
-Voltage: 1~12VDC	-Precious Metal/Carbon Brush	-Electric Lock and Safe
-Speed: 5~2000rpm	-Precise Metal Gears	-Robtics
-Torque: 0.1~2kg.cm	-CW/CCW	-Valves
	-Low noise

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	2	3	4	5
Gear Ratio	10	30	150	625
	12	50	210	1000
		63	250
		100	298
			340
			380
Gearbox length “L” (mm)	9			12

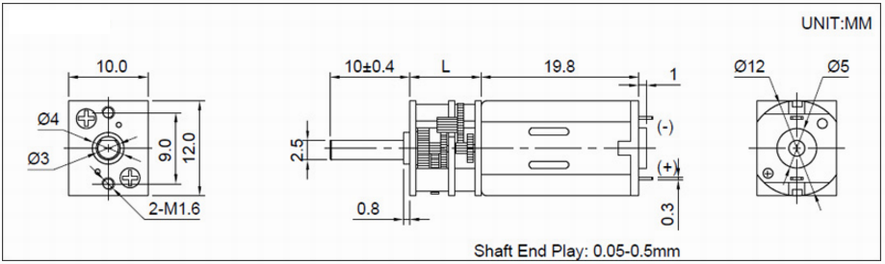

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-SOG12A-03810	1.5-9.0	3VDC	810	≤0.04	712	≤0.1	0.02	≤0.5	0.15
HT-SOG12A-03435	1.5-9.0	3VDC	435	≤0.04	380	≤0.1	0.05	≤0.5	0.28
HT-SOG12A-03238	1.5-9.0	3VDC	238	≤0.04	200	≤0.1	0.1	≤0.5	0.58
HT-SOG12A-03137	1.5-9.0	3VDC	137	≤0.04	101	≤0.1	0.15	≤0.5	0.7
HT-SOG12A-0688	1.5-9.0	6VDC	88	≤0.04	67	≤0.1	0.2	≤0.5	1.0
HT-SOG12A-0660	1.5-9.0	6VDC	60	≤0.04	42	≤0.1	0.3	≤0.5	1.3
HT-SOG12A-0642	1.5-9.0	6VDC	42	≤0.04	29	≤0.1	0.4	≤0.5	1.8
HT-SOG12A-0638	1.5-9.0	6VDC	38	≤0.04	26	≤0.1	0.36	≤0.5	1.7
HT-SOG12A-0630	1.5-9.0	6VDC	30	≤0.04	21	≤0.1	0.45	≤0.5	1.9
HT-SOG12A-0622	1.5-9.0	6VDC	22	≤0.04	15	≤0.1	0.7	≤0.5	3.2
HT-SOG12A-1265	1.5-12	12VDC	65	≤0.08	44	≤0.2	0.5	≤0.8	2
HT-SOG12A-1282	1.5-12	12VDC	82	≤0.08	60	≤0.2	0.45	≤0.8	2

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 1.5V,3V,4.5V,6v,9v, 12v, 24v.
5, Terminals support : cables and connectors available

Tag: n20 6vdc 100rpm gear motor, n20 encoder, n20 micro motor
