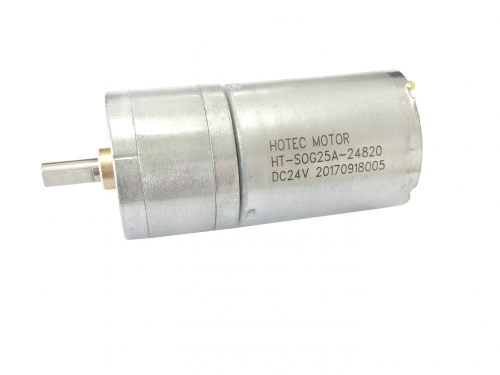

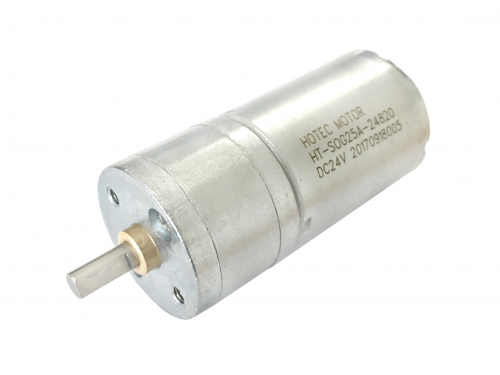

25mm Diameter DC Gear Motor

< >

HT-SOG25A

-Motor type: Brushed DC motor .
-Gearbox: Spur gearbox
-Voltage: 3~24V
-Speed: 2~600RPM
-Torque: 0.1~8kg.cm
-Output shaft: 4mm diameter
-Product: gearmotor with encoder

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

Overviews
Make an inquiry

Performance Range:	Key Features:	Typical Applications:
-Voltage: 3~24VDC -Speed: 3-600rpm -Torque: 0.2~8kg.cm	-Precious Metal/Carbon Brush -Precise Metal Gears -CW/CCW -Low noise	-Security and Safe Industry -Beautry and Health Care -Equipment and Appratus

Title: *

Email: *

Content:

Company:

Contact: *

Tel: *

Fax:

Gear Ratio

Gear Ratio Stage	4	5	6	7	8
Gear Ratio	13	29	55	121	266
	21	41	63	139	307
		47	89	171	376
			103	197	433
				226	499
Gearbox length “L” (mm)	23			27

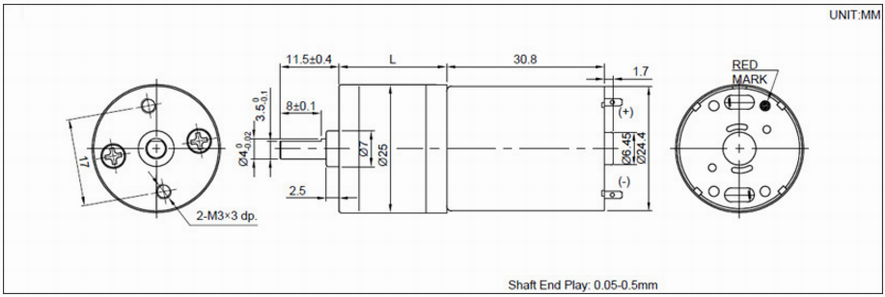

Dimensions

Reference

MODEL	VOLTAGE		NO LOAD		AT MAX EFFICIENCY			AT STALL
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm	A	kg.cm
HT-SOG25A-6362	3.0-9.0	6VDC	362	≤0.12	284	≤0.54	0.45	≤2.2	1.75
HT-SOG25A-6261	3.0-9.0	6VDC	261	≤0.12	198	≤0.54	0.71	≤2.2	2.95
HT-SOG25A-6183	3.0-9.0	6VDC	183	≤0.12	142	≤0.54	0.95	≤2.2	4.2
HT-SOG25A-6138	3.0-9.0	6VDC	138	≤0.12	108	≤0.54	1.1	≤2.2	5.1
HT-SOG25A-6110	3.0-9.0	6VDC	110	≤0.12	89	≤0.54	1.45	≤2.2	5.35
HT-SOG25A-0680	3.0-9.0	6VDC	80	≤0.12	64	≤0.54	2.05	≤2.2	8.24
HT-SOG25A-0652	3.0-9.0	6VDC	52	≤0.12	40	≤0.54	4	≤2.2	16*
HT-SOG25A-0641	3.0-9.0	6VDC	41	≤0.12	32	≤0.54	5	≤2.2	21*
HT-SOG25A-039	1.5-6.0	3VDC	9	≤0.07	6	≤0.22	4.1	≤0.98	16*
HT-SOG25A-037	1.5-6.0	3VDC	7	≤0.07	5	≤0.22	5.2	≤0.98	18*
HT-SOG25A-1258	6.0-12.0	12VDC	58	≤0.21	42	≤1.05	4.5	≤4.15	18*
HT-SOG25A-1232	6.0-12.0	12VDC	32	≤0.21	26	≤1.05	5.4	≤4.15	18*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available

Tag: 25ga370 dc motor, 100 rpm dc motor, micro metal gearmotor
