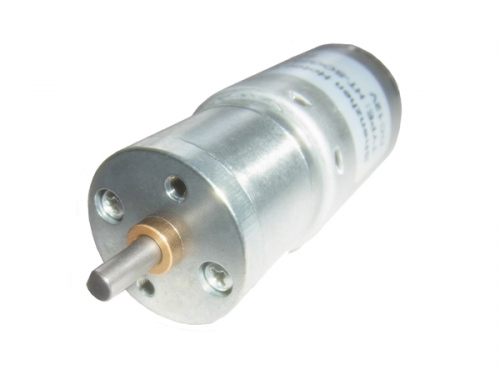

25mm Diameter DC Gear Motor

HT-SOG25D

-Motor type: Brushed DC electric motor .
-Gearbox: Spur gear box
-Voltage: 3~24V
-Speed: 3~600RPM
-Torque: 0.1~9kg.cm
-Output shaft: 4mm diameter
-Product: 12vdc 60rpm 25mm powerful high torque electric gear box motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 3~600rpm
    -Torque: 0.2~9kg.cm
    -Precious Carbon Brush
    -High Torque
    -CW/CCW
    -Low noise
    -Security and Safe Industry
    -Beautry and Health Care
    -Equipment and Appratus
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

4

5

6

7

8

Gear Ratio

13

29

55

121

266

21

41

63

139

307



47

89

171

376





103

197

433







226

499

Gearbox length  “L” (mm)

23

27

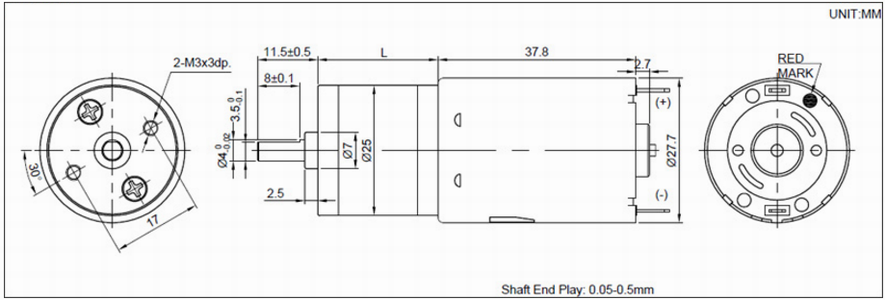

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG25D-6110

4.5-9.0

6VDC

110

≤0.10

80

≤0.30

0.52

≤1.45

2.2

HT-SOG25D-0665

4.5-9.0

6VDC

65

≤0.10

50

≤0.30

1.10

≤1.45

5.4

HT-SOG25D-0655

4.5-9.0

6VDC

55

≤0.10

41

≤0.30

1.25

≤1.45

6.35

HT-SOG25D-12210

6.0-12.0

12VDC

210

≤0.15

172

≤0.50

1.05

≤2.25

5.6

HT-SOG25D-12120

6.0-12.0

12VDC

120

≤0.15

103

≤0.50

1.65

≤2.25

8.25

HT-SOG25D-12108

6.0-12.0

12VDC

108

≤0.15

90

≤0.50

1.72

≤2.25

8.60

HT-SOG25D-1295

6.0-12.0

12VDC

95

≤0.15

76

≤0.50

2.05

≤2.25

8.95

HT-SOG25D-1265

6.0-12.0

12VDC

65

≤0.15

55

≤0.50

2.85

≤2.25

12.55

HT-SOG25D-1260

6.0-12.0

12VDC

60

≤0.15

50

≤0.50

3.2

≤2.25

15.85

HT-SOG25D-1235

6.0-12.0

12VDC

35

≤0.15

28

≤0.50

4.6

≤2.25

18*

HT-SOG25D-1222

6.0-12.0

12VDC

22

≤0.15

18

≤0.50

6.5

≤2.25

18*

HT-SOG25D-1212

6.0-12.0

12VDC

12

≤0.15

10

≤0.50

7.2*

≤2.25

18*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
