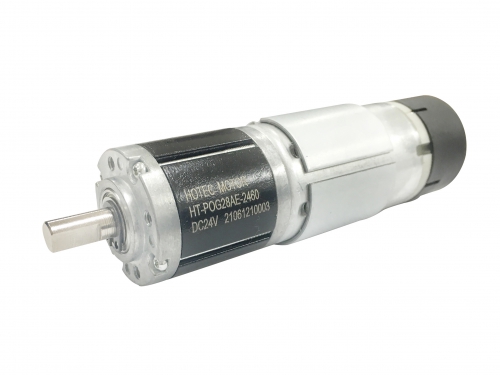

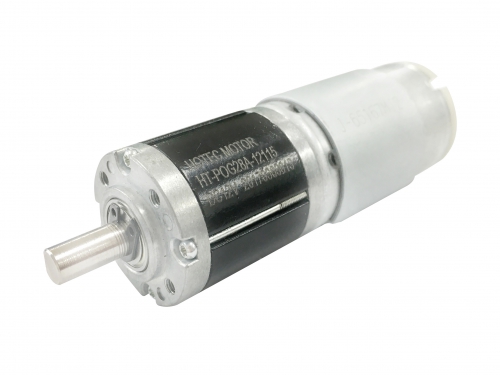

28mm Diameter DC Gear Motor
HT-POG28A
-Motor type: Brushed DC motor
-Gearbox: Planetary gear reduction
-Voltage: 3~24V
-Speed:1~2000RPM
-Torque: 0.4~35kg.cm
-Output shaft: 6mm diameter
-Product: 12Vdc planetary gear reduction motor with encoder
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3~24.0VDC
-Speed: 1~2000rpm
-Torque: 0.4~35kg.cm-Precious Carbon Brush
-Reliable and long life
-CW/CCW
-Low noise-Precise Equipment & Apparatus
-Acuator and Electric Valve
-Auto Curtain and Robotics
Gear Ratio
|
Gear Ratio Stage |
1 |
2 |
3 |
4 |
5 |
|
Gear Ratio |
3.4 |
11 |
38 |
126 |
585 |
|
4.7 |
16 |
51 |
241 |
810 |
|
|
|
21.5 |
72 |
334 |
1120 |
|
|
|
|
100 |
462 |
1549 |
|
|
|
|
|
|
2142 |
|
|
|
|
|
|
|
|
|
Gearbox length “L” (mm) |
20.5 |
26 |
32 |
37.5 |
43.3 |

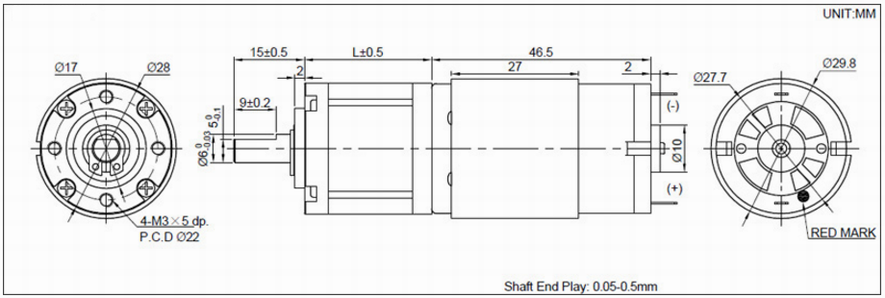

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-POG28A-241300 |
12.0-28.0 |
24VDC |
1300 |
≤0.01 |
1150 |
≤0.46 |
0.52 |
≤2.1 |
2.3 |
|
HT-POG28A-24550 |
12.0-28.0 |
24VDC |
550 |
≤0.01 |
480 |
≤0.46 |
1.05 |
≤2.1 |
4.6 |
|
HT-POG28A-24380 |
12.0-28.0 |
24VDC |
380 |
≤0.01 |
330 |
≤0.46 |
1.5 |
≤2.1 |
6.2 |
|
HT-POG28A-24280 |
12.0-28.0 |
24VDC |
280 |
≤0.01 |
245 |
≤0.46 |
2 |
≤2.1 |
8.8 |
|
HT-POG28A-24160 |
12.0-28.0 |
24VDC |
160 |
≤0.01 |
140 |
≤0.46 |
3.2 |
≤2.1 |
12.6 |
|
HT-POG28A-24120 |
12.0-28.0 |
24VDC |
120 |
≤0.01 |
102 |
≤0.46 |
4.5 |
≤2.1 |
18 |
|
HT-POG28A-2485 |
12.0-28.0 |
24VDC |
85 |
≤0.01 |
73 |
≤0.46 |
6.1 |
≤2.1 |
24 |
|
HT-POG28A-2460 |
12.0-28.0 |
24VDC |
60 |
≤0.01 |
52 |
≤0.46 |
8 |
≤2.1 |
32 |
|
HT-POG28A-2450 |
12.0-28.0 |
24VDC |
50 |
≤0.01 |
42 |
≤0.46 |
9.8 |
≤2.1 |
40 |
|
HT-POG28A-2426 |
12.0-28.0 |
24VDC |
26 |
≤0.01 |
22 |
≤0.46 |
20 |
≤2.1 |
50 |
|
HT-POG28A-2414 |
12.0-28.0 |
24VDC |
14 |
≤0.01 |
11 |
≤0.46 |
30 |
≤2.1 |
50* |
|
HT-POG28A-2404 |
12.0-28.0 |
24VDC |
4 |
≤0.01 |
3 |
≤0.46 |
30* |
≤2.1 |
50* |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
