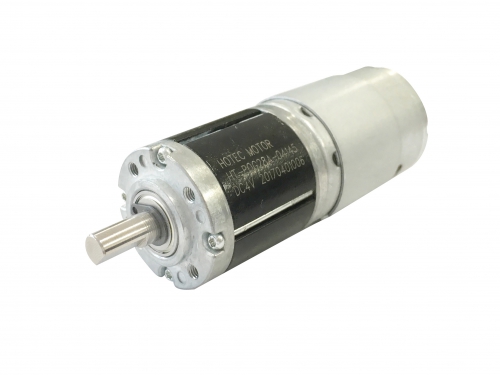

28mm Diameter DC Gear Motor
HT-POG28B
-Motor type: Brushed DC motor .
-Gearbox : Planetary gear box
-Voltage: 3~24V
-Speed: 1~2000RPM
-Torque: 0.2~35kg.cm
-Output shaft: 6mm diameter

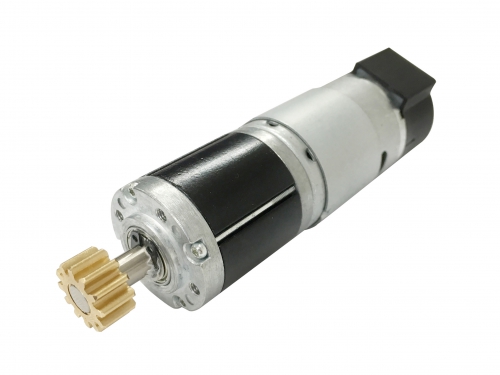

-Product: 12V 24V planetary gear motor with 6mm shaft and encoder
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3~24VDC
-Speed: 1~2000rpm
-Torque: 0.1~35kg.cm-Precious Carbon Brush
-Precise Metal Gears
-CW/CCW
-Low noise-Precise Equipment & machine
-Acuator and Electric Valve
-Power Tool
Gear Ratio
|
Gear Ratio Stage |
1 |
2 |
3 |
4 |
5 |
|
Gear Ratio |
3.4 |
11 |
38 |
126 |
585 |
|
4.7 |
16 |
51 |
241 |
810 |
|
|
|
21.5 |
72 |
334 |
1120 |
|
|
|
|
100 |
462 |
1549 |
|
|
|
|
|
|
2142 |
|
|
|
|
|
|
|
|
|
Gearbox length “L” (mm) |
20.5 |
26 |
32 |
37.5 |
43.3 |

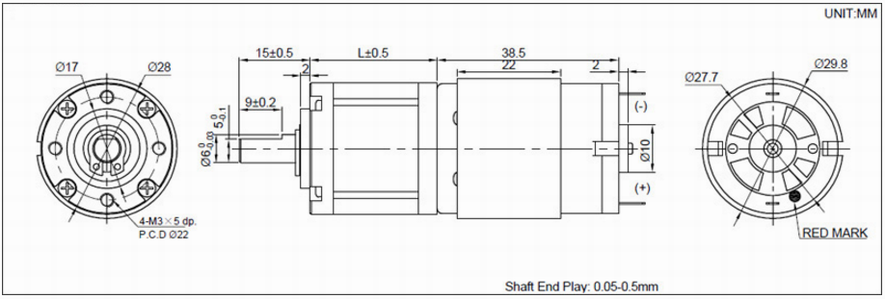

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-POG28B-121300 |
6.0-12.0 |
12VDC |
1300 |
≤0.18 |
1050 |
≤0.62 |
0.3 |
≤2.95 |
1.2 |
|
HT-POG28B-12550 |
6.0-12.0 |
12VDC |
550 |
≤0.18 |
425 |
≤0.62 |
0.55 |
≤2.95 |
2.35 |
|
HT-POG28B-12380 |
6.0-12.0 |
12VDC |
380 |
≤0.18 |
295 |
≤0.62 |
0.92 |
≤2.95 |
3.6 |
|
HT-POG28B-12270 |
6.0-12.0 |
12VDC |
270 |
≤0.18 |
220 |
≤0.62 |
1.25 |
≤2.95 |
4.3 |
|
HT-POG28B-12160 |
6.0-12.0 |
12VDC |
160 |
≤0.18 |
130 |
≤0.62 |
1.9 |
≤2.95 |
8.4 |
|
HT-POG28B-12120 |
6.0-12.0 |
12VDC |
120 |
≤0.18 |
95 |
≤0.62 |
2.5 |
≤2.95 |
10.8 |
|
HT-POG28B-1285 |
6.0-12.0 |
12VDC |
85 |
≤0.18 |
66 |
≤0.62 |
3.6 |
≤2.95 |
15 |
|
HT-POG28B-1260 |
6.0-12.0 |
12VDC |
60 |
≤0.18 |
48 |
≤0.62 |
5.1 |
≤2.95 |
20 |
|
HT-POG28B-1245 |
6.0-12.0 |
12VDC |
45 |
≤0.18 |
39 |
≤0.62 |
5.8 |
≤2.95 |
26 |
|
HT-POG28B-1226 |
6.0-12.0 |
12VDC |
26 |
≤0.18 |
20 |
≤0.62 |
11 |
≤2.95 |
44 |
|
HT-POG28B-1216 |
6.0-12.0 |
12VDC |
16 |
≤0.18 |
12 |
≤0.62 |
15.5 |
≤2.95 |
50 |
|
HT-POG28B-1204 |
6.0-12.0 |
12VDC |
4 |
≤0.18 |
3 |
≤0.62 |
30* |
≤2.95 |
50* |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
