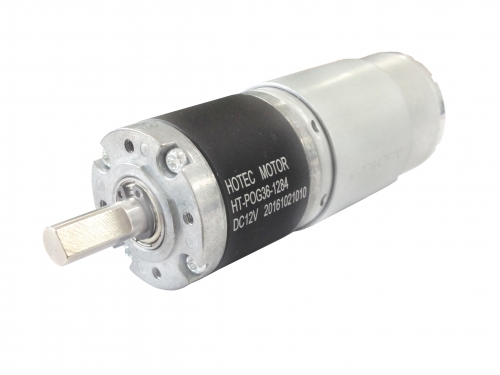

36mm Diameter DC Gear Motor

HT-POG36

-Motor type: Brush DC electric motor
-Gearbox: Planetary gearbox
-Voltage: 6-24V
-Speed: 0.5~1500RPM
-Torque: 1~60kg.cm
-Output shaft: 8mm diameter
-Product: electric motor planetary gearbox 6 nm

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 6.0-24VDC
    -Speed: 0.5-1500rpm
    -Torque: 1-60kg.cm
    -Precious Carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Precise Equipment & machine
    -Banking and Vending System
    -Electric Valve and Robot

  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

1

2

3

4

5

Gear Ratio

3.7

14

51

188

977

5.2

19

71

264

1367



27

100

369

1910





139

516

2671







721

3736













Gearbox length “L” (mm)

25

32.5

38.5

44.7

51

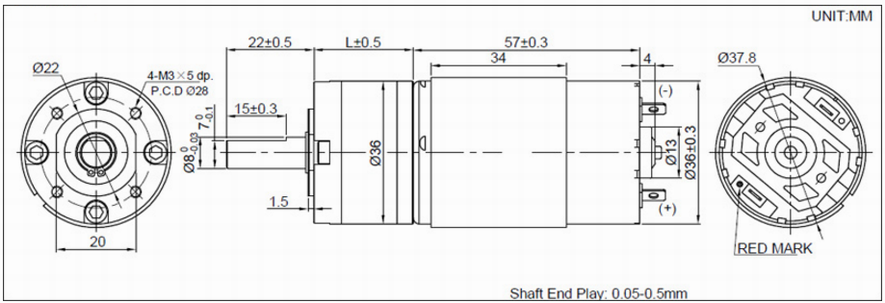

Dimensions

Reference

MODEL

                     VOLTAGE

           NO LOAD

               AT MAX EFFICIENCY

                AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-POG36-121200

6.0-15.0

12VDC

1200

≤0.34

980

≤1.75

1.2

≤7.52

4.4

HT-POG36-12430

6.0-15.0

12VDC

430

≤0.34

360

≤1.75

2.7

≤7.52

10.5

HT-POG36-12320

6.0-15.0

12VDC

320

≤0.34

275

≤1.75

3.6

≤7.52

14.5

HT-POG36-12225

6.0-15.0

12VDC

225

≤0.34

190

≤1.75

5.4

≤7.52

24.5

HT-POG36-12120

6.0-15.0

12VDC

120

≤0.34

95

≤1.75

9.5

≤7.52

38

HT-POG36-1285

6.0-15.0

12VDC

85

≤0.34

68

≤1.75

12

≤7.52

48

HT-POG36-1260

6.0-15.0

12VDC

60

≤0.34

51

≤1.75

17.5

≤7.52

68

HT-POG36-1245

6.0-15.0

12VDC

45

≤0.34

36

≤1.75

25

≤7.52

100

HT-POG36-1230

6.0-15.0

12VDC

30

≤0.34

26

≤1.75

32

≤7.52

100

HT-POG36-1223

6.0-15.0

12VDC

23

≤0.34

19

≤1.75

42

≤7.52

100*

HT-POG36-1206

6.0-15.0

12VDC

6

≤0.34

5

≤1.75

60*

≤7.52

100*

HT-POG36-121.8

6.0-15.0

12VDC

1.8

≤0.34

1.2

≤1.75

 60*

≤7.52

100*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.

Tag:12v dc gear motor, high torque planetary gearbox, motor 20 rpm
