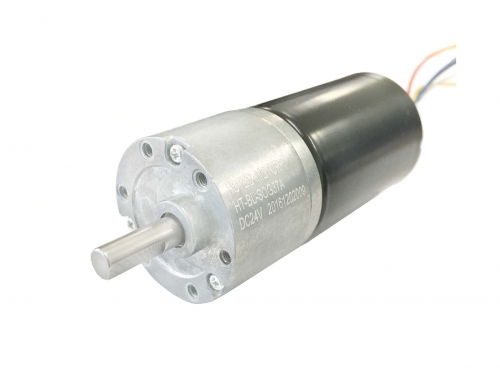

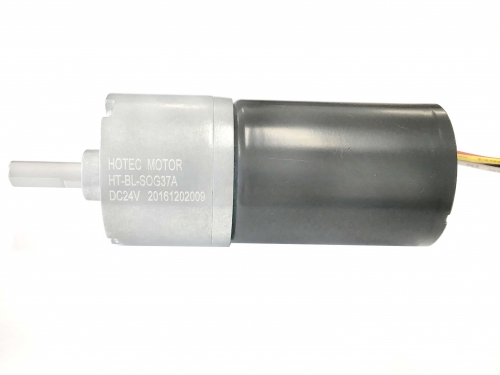

37mm Diameter DC Gear Motor

HT-BL-SOG37A

-Motor: Brushless DC motor .
-Gearbox: Spur gearbox
-Voltage: 6~24V
-Speed: 2~600RPM
-Torque: 1~40kg.cm
-Output shaft: 6mm diameter
-Product:  200 rpm brushless dc gear motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 6~24VDC
    -Speed: 2~600rpm
    -Torque: 1~40kg.cm

    -Long Lifetime
    -Quite Low Noise
    -High Torque
    -No Spark
    -Vending and Banking System
    -Sanitary and Cleaning
    -Robtics and Equipment
    -Home Appliance
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

2

3

4

5

6

Gear Ratio

10

20

50

120

450



30

70

150

490





 90

210

630







270

810











Gearbox length “L” (mm)

                 24.5


29

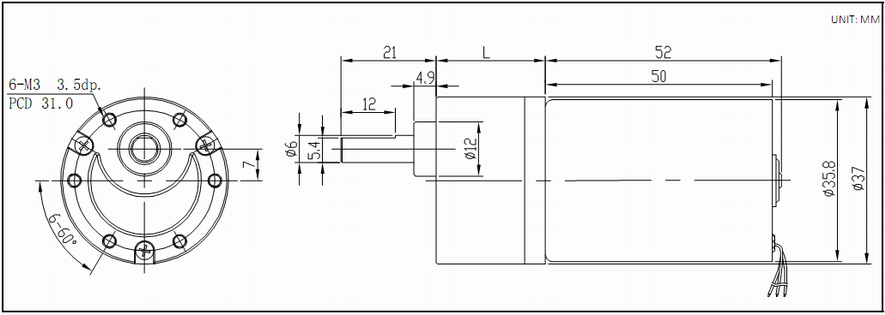

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
   RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-BL-SOG37A-12510

10.0-14.0

12VDC

510

≤0.36

395

≤2.05

2.05

≤8.7

10.5

HT-BL-SOG37A-12255

10.0-14.0

12VDC

255

≤0.36

198

≤2.05

3.8

≤8.7

19

HT-BL-SOG37A-12170

10.0-14.0

12VDC

170

≤0.36

130

≤2.05

5.4

≤8.7

27

HT-BL-SOG37A-12100

10.0-14.0

12VDC

100

≤0.36

80

≤2.05

8.5

≤8.7

45

HT-BL-SOG37A-1270

10.0-14.0

12VDC

70

≤0.36

56

≤2.05

12.5

≤8.7

50

HT-BL-SOG37A-1254

10.0-14.0

12VDC

54

≤0.36

 45

≤2.05

15

≤8.7

60

HT-BL-SOG37A-1243

10.0-14.0

12VDC

 43

≤0.36

31

≤2.05

24

≤8.7

80

HT-BL-SOG37A-1234

10.0-14.0

12VDC

34

≤0.36

26

≤2.05

32

≤8.7

80

HT-BL-SOG37A-1225

10.0-14.0

12VDC

25

≤0.36

19

≤2.05

40*

≤8.7

80*

HT-BL-SOG37A-1219

10.0-14.0

12VDC

19

≤0.36

 16

≤2.05

40*

≤8.7

80*

HT-BL-SOG37A-1211

10.0-14.0

12VDC

11

≤0.36

8.5

≤2.05

40*

≤8.7

80*

HT-BL-SOG37A-1208

10.0-14.0

12VDC

8

≤0.36

6

≤2.05

40*

≤8.7

80*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors (brushed DC motors and brushless DC motors).
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, 6 wires are optional :
        (1) Red wire: positive pole
        (2) Black wire : negative pole
        (3) White wire: CW/CCW control
        (4) Yellow wire :FG signal
        (5) Blue wire: PWM control
        (6) Gree wire : Brake

Tag: small gearbox with motor, 200 rpm gear motor, variable speed gear reduction motor
