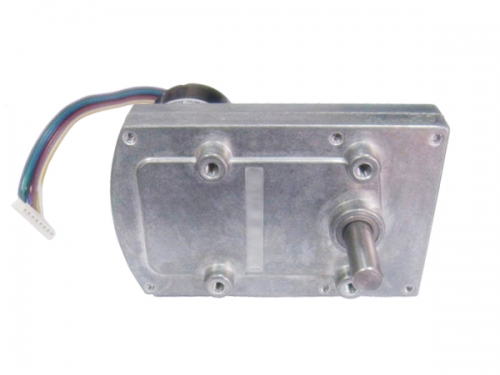

Flat Gearbox Motor

HT-BL-COG95B

-Size: 95x60 mm
-Gearbox :Spur Gear Reduction
-Voltage:6~24V
-Speed: 1~160 RPM
-Torque:2~120kg.cm
-Output shaft: 8mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 6~24VDC
    -Speed: 2~160 rpm
    -Torque: 1~125kg.cm

    -Long Lifetime
    -Low Noise
    -Precise Metal Gears
    -No Spark

    -Home and office Automation
    -Banking and Vending System
    -Equipment


  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

3

4

5

Gear Ratio

37

162

594

60

265

651

86

315

973





1059

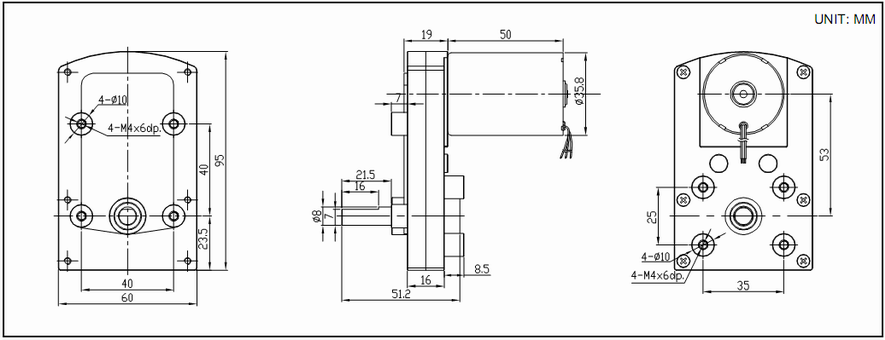

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATE RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-BL-COG95B-12135

9.0-14.0

12VDC

135

0.18

105

0.35

5.6

4.0

24

HT-BL-COG95B-1283

9.0-14.0

12VDC

83

0.18

63

0.35

9

4.0

36

HT-BL-COG95B-1276

9.0-14.0

12VDC

76

0.18

57

0.35

10

4.0

41

HT-BL-COG95B-1258

9.0-14.0

12VDC

58

0.18

43

0.35

13

4.0

52

HT-BL-COG95B-1231

9.0-14.0

12VDC

31

0.18

22

0.35

23

4.0

86

HT-BL-COG95B-1219

9.0-14.0

12VDC

19

0.18

14

0.35

38

4.0

HT-BL-COG95B-1216

9.0-14.0

12VDC

16

0.18

11

0.35

46

4.0

180

HT-BL-COG95B-128.5

9.0-14.0

12VDC

8.5

0.18

6

0.35

83

4.0

356

HT-BL-COG95B-127.7

9.0-14.0

12VDC

7.7

0.18

5.4

0.35

91

4.0

368

HT-BL-COG95B-1205

9.0-14.0

12VDC

5

0.18

3.3

0.35

126

4.0

480*

HT-BL-COG95B-124.7

9.0-14.0

12VDC

4.7

0.18

3

0.35

137

4.0

500*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, 6 wires are optional :
        (1) Red wire: positive pole
        (2) Black wire : negative pole
        (3) White wire: CW/CCW control
        (4) Yellow wire :FG signal
        (5) Blue wire: PWM control
        (6) Gree wire : Brake
