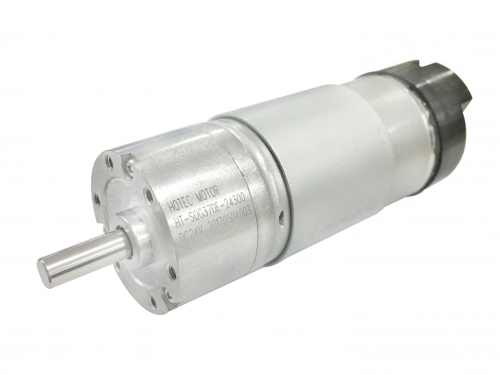

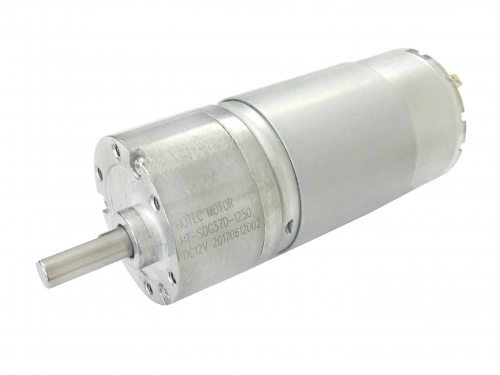

37mm Diameter DC Gear Motor
HT-SOG37D
-Motor type: Brushed DC motor .
-Gearbox: Spur gear box
-Voltage: 6~24V
-Speed: 2~600RPM
-Torque: 1~40kg.cm
-Output shaft: 6mm diameter
-Product: 12V 100 rpm metal gear dc motor 37dx68l
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 6~24VDC
-Speed: 2~600rpm
-Torque: 1~40kg.cm
-Precious Carbon Brush
-High Torque
-Long Lifetime
-Precise Metal Gears-Vending and Banking System
-Sanitary and Cleaning
-Robtics and Equipment-Home Appliance
Gear Ratio
|
Gear Ratio Stage |
2 |
3 |
4 |
5 |
6 |
|
Gear Ratio |
10 |
20 |
50 |
120 |
450 |
|
|
30 |
70 |
150 |
490 |
|
|
|
|
90 |
210 |
630 |
|
|
|
|
|
270 |
810 |
|
|
|
|
|
|
|
|
|
Gearbox length “L” (mm) |
24.5 |
29 |
|||

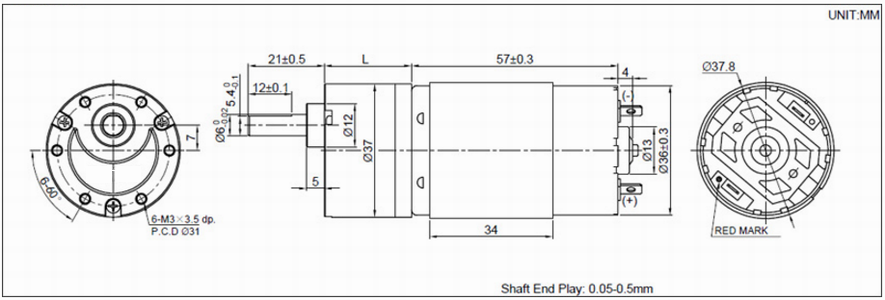

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG37D-24610 |
12.0-28.0 |
24VDC |
610 |
≤0.18 |
505 |
≤0.85 |
2.45 |
≤4.25 |
10.5 |
|
HT-SOG37D-24305 |
12.0-28.0 |
24VDC |
305 |
≤0.18 |
252 |
≤0.85 |
4.4 |
≤4.25 |
17.5 |
|
HT-SOG37D-24200 |
12.0-28.0 |
24VDC |
200 |
≤0.18 |
165 |
≤0.85 |
6.5 |
≤4.25 |
26.5 |
|
HT-SOG37D-2485 |
12.0-28.0 |
24VDC |
85 |
≤0.18 |
70 |
≤0.85 |
14.5 |
≤4.25 |
58 |
|
HT-SOG37D-2465 |
12.0-28.0 |
24VDC |
65 |
≤0.18 |
55 |
≤0.85 |
16.5 |
≤4.25 |
66 |
|
HT-SOG37D-2450 |
12.0-28.0 |
24VDC |
50 |
≤0.18 |
41 |
≤0.85 |
20 |
≤4.25 |
80 |
|
HT-SOG37D-2445 |
12.0-28.0 |
24VDC |
45 |
≤0.18 |
36 |
≤0.85 |
23.5 |
≤4.25 |
80 |
|
HT-SOG37D-2440 |
12.0-28.0 |
24VDC |
40 |
≤0.18 |
32 |
≤0.85 |
25 |
≤4.25 |
80* |
|
HT-SOG37D-2430 |
12.0-28.0 |
24VDC |
30 |
≤0.18 |
24 |
≤0.85 |
33.5* |
≤4.25 |
80* |
|
HT-SOG37D-2422 |
12.0-28.0 |
24VDC |
22 |
≤0.18 |
18 |
≤0.85 |
40* |
≤4.25 |
80* |
|
HT-SOG37D-24500 |
12.0-28.0 |
24VDC |
500 |
≤0.18 |
420 |
≤0.85 |
2.9 |
≤4.25 |
12.5 |
|
HT-SOG37D-24450 |
12.0-28.0 |
24VDC |
450 |
≤0.18 |
385 |
≤0.85 |
3.1 |
≤4.25 |
13.0 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
Tag: gearmotor, metal gear for dc motor, motor gear dc 12v
