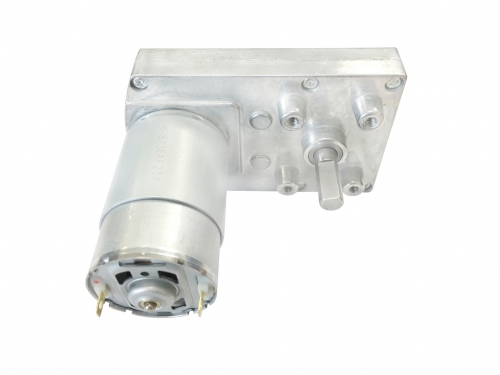

Flat Gearbox Motor

HT-COG95B

-Size: 95x60 mm
-Gearbox :Spur Gear Reduction
-Voltage:6~24V
-Speed: 1~160 RPM
-Torque:3-150kg.cm
-Output shaft: 8mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 6~24VDC
    -Speed: 1~160 rpm
    -Torque: 3~150kg.cm

    -Precious Carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -High Torque
    -Home and office Automation
    -Banking and Vending System
    -Equipment

  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

3

4

5

Gear Ratio

37

162

594

60

265

651

86

315

973





1059

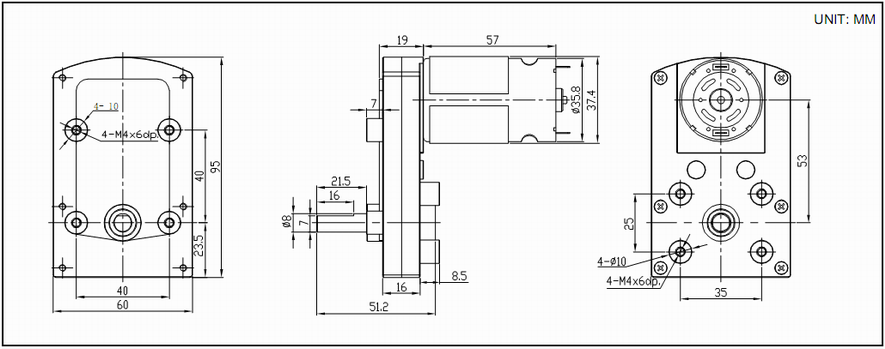

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
     RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-COG95B-12165

12.0-24.0

24VDC

165

≤0.25

125

≤1.05

7.2

≤5.3

28

HT-COG95B-12144

12.0-24.0

24VDC

144

≤0.25

105

≤1.05

9

≤5.3

36

HT-COG95B-1275

12.0-24.0

24VDC

75

≤0.25

60

≤1.05

17

≤5.3

78

HT-COG95B-1238

12.0-24.0

24VDC

38

≤0.25

31

≤1.05

30

≤5.3

120

HT-COG95B-1225

12.0-24.0

24VDC

25

≤0.25

20

≤1.05

30

≤5.3

120

HT-COG95B-1220

12.0-24.0

24VDC

20

≤0.25

16

≤1.05

50

≤5.3

150

HT-COG95B-1216

12.0-24.0

24VDC

16

≤0.25

12

≤1.05

65

≤5.3

200

HT-COG95B-1210

12.0-24.0

24VDC

10

≤0.25

8.5

≤1.05

98

≤5.3

500

HT-COG95B-1209

12.0-24.0

24VDC

9

≤0.25

7.5

≤1.05

98*

≤5.3

500*

HT-COG95B-1206

12.0-24.0

24VDC

6

≤0.25

5

≤1.05

145*

≤5.3

500*

HT-COG95B-125.5

12.0-24.0

24VDC

5.5

≤0.25

4.5

≤1.05

145*

≤5.3

500*

HT-COG95B-124.5

12.0-24.0

24VDC

4.5

≤0.25

3.5

≤1.05

165*

≤5.3

500*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.

Tag: mega torque dc motor, dual shaft dc motor, 24v dc motor with gearbox
