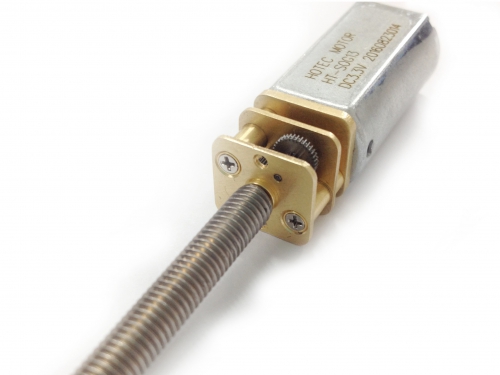

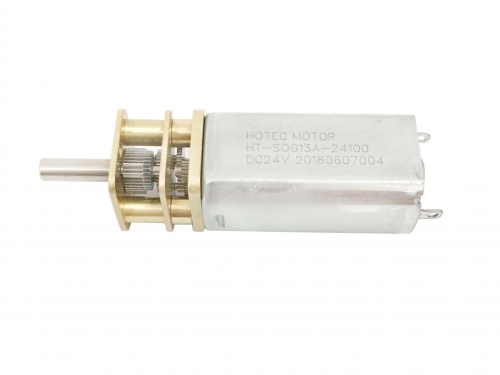

-Size: 13x12 mm
-Gearbox :Spur Gearhead
-Voltage: 1~24VDC
-Speed:8~1200 RPM
-Torque:0.1~4.5kg.cm
-Output shaft: 3mm diameter
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
Performance Range: | Key Features: | Typical Applications: |
-Voltage:1-24VDC
-Speed: 5-1500 rpm -Torque: 0.1-4.5kg.cm |
-Precious Metal/Carbon Brush
-Precise Metal Gears -CW/CCW -Low noise |
-Security and Safe Industry
-Robtics and Automation -Electric Valve |
Gear Ratio Stage |
2 |
3 |
4 |
5 |
Gear Ratio |
10 |
35 |
115 |
|
|
63 |
150 |
|
|
|
86 |
360 |
|
|

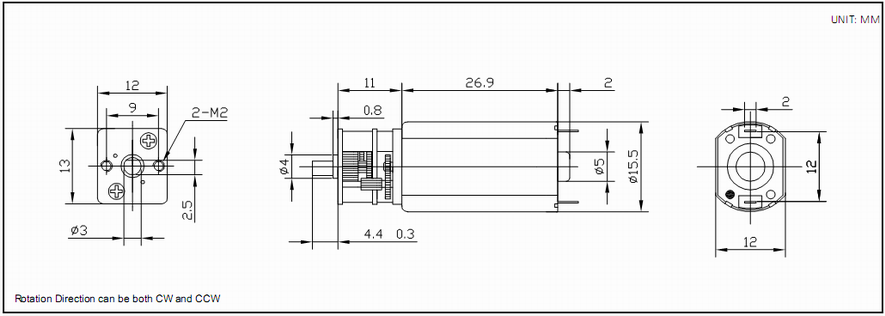

Gearbox length “L” (mm) |
11 |
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
HT-SOG13A-0672 |
4.5-13.5 |
12.0VDC |
1200 |
≤0.05 |
1000 |
≤0.19 |
0.08 |
≤0.8 |
0.5 |
HT-SOG13A-0630 |
4.5-13.5 |
12.0VDC |
342 |
≤0.05 |
274 |
≤0.19 |
0.28 |
≤0.8 |
1.7 |
HT-SOG13A-05260 |
4.5-13.5 |
12.0VDC |
190 |
≤0.05 |
148 |
≤0.19 |
0.5 |
≤0.8 |
3.2 |
HT-SOG13A-05145 |
4.5-13.5 |
12.0VDC |
139 |
≤0.05 |
104 |
≤0.19 |
0.65 |
≤0.8 |
4.3 |
HT-SOG13A-05100 |
4.5-13.5 |
12.0VDC |
104 |
≤0.05 |
76 |
≤0.19 |
0.88 |
≤0.8 |
5.7 |
HT-SOG13A-0580 |
4.5-13.5 |
12.0VDC |
80 |
≤0.05 |
58 |
≤0.19 |
1.1 |
≤0.8 |
7.5 |
HT-SOG13A-0560 |
4.5-13.5 |
12.0VDC |
48 |
≤0.05 |
35 |
≤0.19 |
1.8 |
≤0.8 |
8* |
HT-SOG13A-03156 |
4.5-13.5 |
12.0 VDC |
33 |
≤0.10 |
24 |
≤0.50 |
2.5 |
≤1.8 |
8* |
HT-SOG13A-0386 |
1.5-7.0 |
5.0VDC |
117 |
≤0.10 |
85 |
≤0.50 |
0.4 |
≤1.8 |
4 |
HT-SOG13A-0362 |
1.5-7.0 |
5.0VDC |
64 |
≤0.10 |
46 |
≤0.50 |
0.6 |
≤1.8 |
5 |
HT-SOG13A-0336 |
1.5-6.0 |
5.0VDC |
50 |
≤0.10 |
36 |
≤0.50 |
0.8 |
≤1.8 |
7 |
HT-SOG13A-0315 |
1.5-6.0 |
3VDC |
21 |
≤0.10 |
14 |
≤0.50 |
1.7 |
≤2.0 |
8 |
