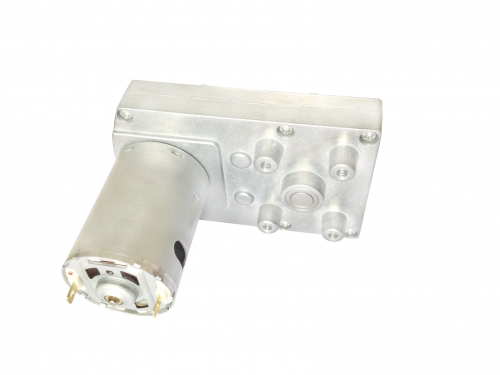

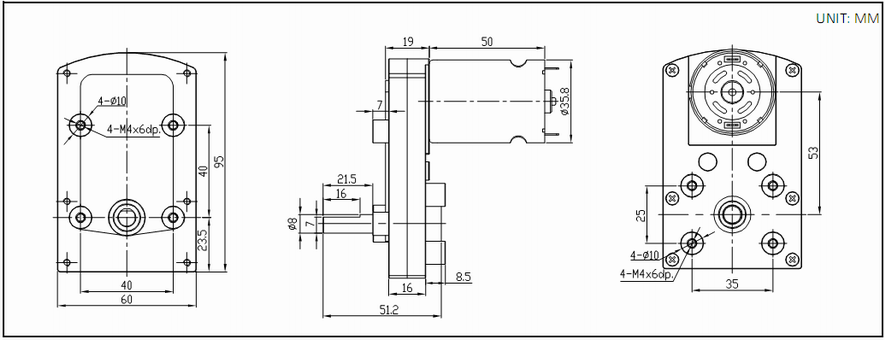

-Size: 95x60 mm
-Gearbox :Spur Gear Reduction
-Voltage:6~24V
-Speed: 1~160 RPM
-Torque:2~120kg.cm
-Output shaft: 8mm diameter
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
Performance Range: | Key Features: | Typical Applications: |
-Voltage: 6~24VDC
-Speed: 1~162 rpm -Torque: 2~100kg.cm |
-Precious Carbon Brush
-Precise Metal Gears -CW/CCW - High Torque |
-Home and office Automation
-Banking and Vending System -Equipment and Apparatus |
Gear Ratio Stage |
3 |
4 |
5 |
Gear Ratio |
37 |
162 |
594 |
60 |
265 |
651 |
|
86 |
315 |
973 |
|
|
|
1059 |
|
|
|
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
HT-COG95C-12165 |
6.0-12.0 |
12VDC |
165 |
≤0.35 |
138 |
≤1.35 |
4.8 |
≤6.85 |
20 |
HT-COG95C-12144 |
6.0-12.0 |
12VDC |
144 |
≤0.35 |
122 |
≤1.35 |
6.5 |
≤6.85 |
28 |
HT-COG95C-12100 |
6.0-12.0 |
12VDC |
100 |
≤0.35 |
86 |
≤1.35 |
7.5 |
≤6.85 |
30 |
HT-COG95C-1275 |
6.0-12.0 |
12VDC |
75 |
≤0.35 |
62 |
≤1.35 |
11 |
≤6.85 |
57 |
HT-COG95C-1240 |
6.0-12.0 |
12VDC |
40 |
≤0.35 |
34 |
≤1.35 |
19 |
≤6.85 |
76 |
HT-COG95C-1225 |
6.0-12.0 |
12VDC |
25 |
≤0.35 |
21 |
≤1.35 |
30 |
≤6.85 |
126 |
HT-COG95C-1220 |
6.0-12.0 |
12VDC |
20 |
≤0.35 |
17 |
≤1.35 |
36 |
≤6.85 |
150 |
HT-COG95C-1210 |
6.0-12.0 |
12VDC |
10 |
≤0.35 |
8.7 |
≤1.35 |
62 |
≤6.85 |
185 |
HT-COG95C-0652 |
6.0-12.0 |
6VDC |
52 |
≤0.18 |
44 |
≤0.85 |
3.6 |
≤4.55 |
14 |
HT-COG95C-0636 |
6.0-12.0 |
6VDC |
36 |
≤0.18 |
30 |
≤0.85 |
5.8 |
≤4.55 |
24 |
HT-COG95C-0620 |
6.0-12.0 |
6VDC |
20 |
≤0.18 |
16 |
≤0.85 |
10 |
≤4.55 |
40 |
HT-COG95C-0604 |
6.0-12.0 |
6VDC |
4 |
≤0.18 |
3 |
≤0.85 |
53 |
≤4.55 |
200 |
