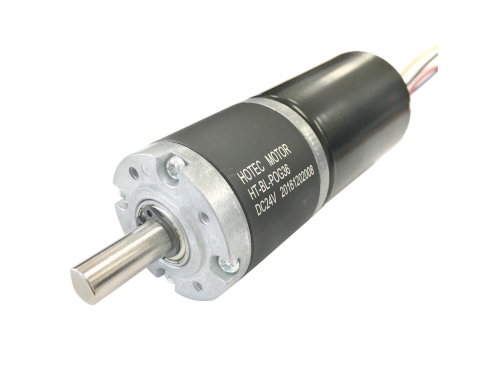

36mm Diameter DC Gear Motor
HT-BL-POG36B
-Motor type : Brushless DC motor
-Gearbox : Planetary gearbox
-Voltage: 12-24VDC
-Speed: 1~1500RPM
-Torque: 1~60kg.cm
-Output shaft: 8mm diameter
-Product: planetary gearmotor 24v bldc high torque
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 12-24VDC
-Speed: 1-1500rpm
-Torque: 1-60kg.cm-Low Noise
-Long Life
-High Torque Smalll Size
-No Spark-Household Appliance And Office Automation
-Auto Dispenser
-Cleaning Machines
- Infusion Pumps
Gear Ratio
|
Gear Ratio Stage |
1 |
2 |
3 |
4 |
5 |
|
Gear Ratio |
3.7 |
14 |
51 |
188 |
977 |
|
5.2 |
19 |
71 |
264 |
1367 |
|
|
|
27 |
100 |
369 |
1910 |
|
|
|
|
139 |
516 |
2671 |
|
|
|
|
|
721 |
3736 |
|
|
|
|
|
|
|
|
|
Gearbox length “L” (mm) |
25 |
32.5 |
38.5 |
44.7 |
51 |

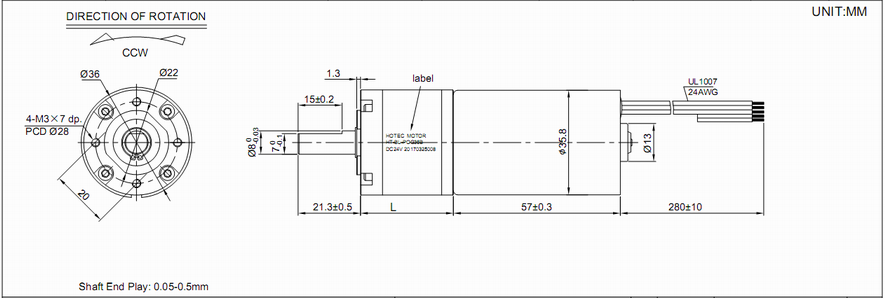

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-BL-POG36B-121200 |
9.0-15.0 |
12VDC |
1200 |
≤0.40 |
980 |
≤2.25 |
2 |
≤10.80 |
8 |
|
HT-BL-POG36B-12430 |
9.0-15.0 |
12VDC |
430 |
≤0.40 |
360 |
≤2.25 |
4.2 |
≤10.80 |
18 |
|
HT-BL-POG36B-12320 |
9.0-15.0 |
12VDC |
320 |
≤0.40 |
275 |
≤2.25 |
5.6 |
≤10.80 |
25 |
|
HT-BL-POG36B-12225 |
9.0-15.0 |
12VDC |
225 |
≤0.40 |
190 |
≤2.25 |
7.6 |
≤10.80 |
35 |
|
HT-BL-POG36B-12120 |
9.0-15.0 |
12VDC |
120 |
≤0.40 |
95 |
≤2.25 |
14.25 |
≤10.80 |
50 |
|
HT-BL-POG36B-1285 |
9.0-15.0 |
12VDC |
85 |
≤0.40 |
68 |
≤2.25 |
18 |
≤10.80 |
72 |
|
HT-BL-POG36B-1260 |
9.0-15.0 |
12VDC |
60 |
≤0.40 |
51 |
≤2.25 |
26.2 |
≤10.80 |
98 |
|
HT-BL-POG36B-1245 |
9.0-15.0 |
12VDC |
45 |
≤0.40 |
36 |
≤2.25 |
37.5 |
≤10.80 |
132 |
|
HT-BL-POG36B-1230 |
9.0-15.0 |
12VDC |
30 |
≤0.40 |
26 |
≤2.25 |
48 |
≤10.80 |
150 |
|
HT-BL-POG36B-1223 |
9.0-15.0 |
12VDC |
23 |
≤0.40 |
19 |
≤2.25 |
60 * |
≤10.80 |
150* |
|
HT-BL-POG36B-1206 |
9.0-15.0 |
12VDC |
6 |
≤0.40 |
5 |
≤2.25 |
60* |
≤10.80 |
150* |
|
HT-BL-POG36B-121.8 |
9.0-15.0 |
12VDC |
1.8 |
≤0.40 |
1.2 |
≤2.25 |
60* |
≤10.80 |
150* |
1, The speed and torque are adjustable .
2, The gearbox can match other DC brushless motors and brush motors
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, 6 wires are optional :
(1) Red wire: positive pole
(2) Black wire : negative pole
(3) White wire: CW/CCW control
(4) Yellow wire :FG signal
(5) Blue wire: PWM control
(6) Gree wire : Brake
Tag: bldc planetary gear motor, dc planetary gear motor, 4 rpm dc motor
