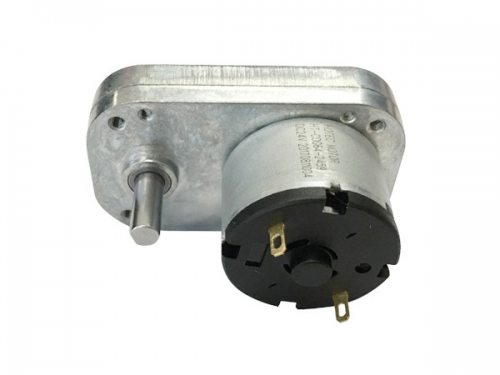

Flat Gearbox Motor

HT-COG64

-Size: 65x38 mm Diameter
-Gearbox :Spur Gear Reduction
-Voltage:3~24V
-Speed: 2~250 RPM
-Torque:0.2~20kg.cm
-Output shaft: 6mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 2~250 rpm
    -Torque: 0.2~20kg.cm

    -Precious Carbon Brush/Metal Brush
    -Small Size High Torque
    -CW/CCW
    -Low noise

    -Robotics
    -Household Appliance
    -Medical devices .

  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

3

4

5

6

Gear Ratio

31

105

234

535





292

663







828

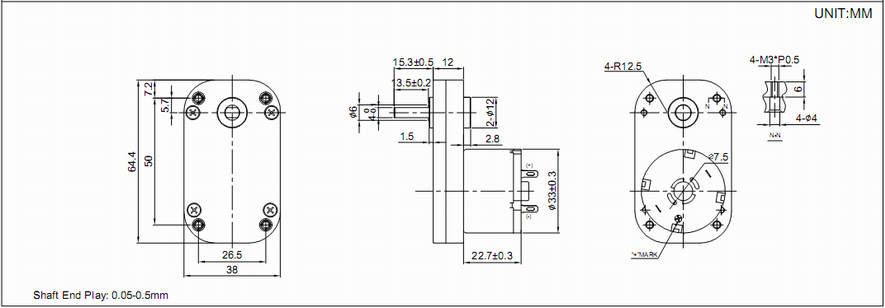

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-COG64-0698

3.0-9.0

6VDC

98

0.06

78

0.11

0.2

0.85

1

HT-COG64-0629

3.0-9.0

6VDC

29

0.06

23

0.11

0.7

0.85

3.5

HT-COG64-0613

3.0-9.0

6VDC

13

0.06

10

0.11

1.5

0.85

7

HT-COG64-0610

3.0-9.0

6VDC

10

0.06

8

0.11

1.9

0.85

8

HT-COG64-0606

3.0-9.0

6VDC

6

0.06

5

0.11

3.2

0.85

14

HT-COG64-0605

3.0-9.0

6VDC

5

0.06

3

0.11

3.9

0.85

25

HT-COG64-0604

3.0-9.0

6VDC

4

0.06

2

0.11

8.2

0.85

33

HT-COG64-12195

6.0-12.0

12VDC

195

0.08

156

0.25

0.9

1.2

4

HT-COG64-1257

6.0-12.0

12VDC

57

0.08

45

0.25

2.6

1.2

12

HT-COG64-1225

6.0-12.0

12VDC

25

0.08

20

0.25

6.0

1.2

24

HT-COG64-1211

6.0-12.0

12VDC

11

0.08

9

0.25

13

1.2

40

Remark:
1, The speed and torque are adjustable.
2, The gearbox can match other DC motors .
3, Shaft can be customized ;
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support :cables and connectors available.
